Sloan 3014801 Royal 952 2-10 3/4 Ldim

Product Description

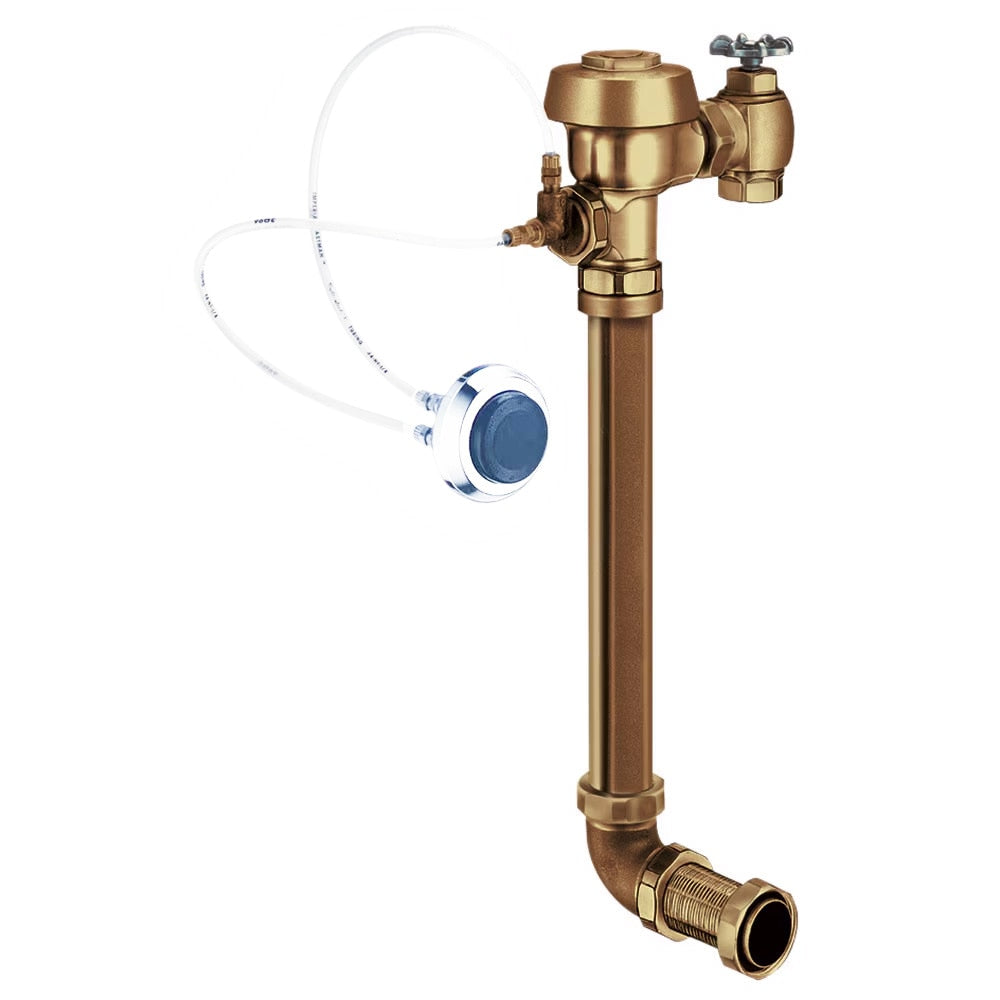

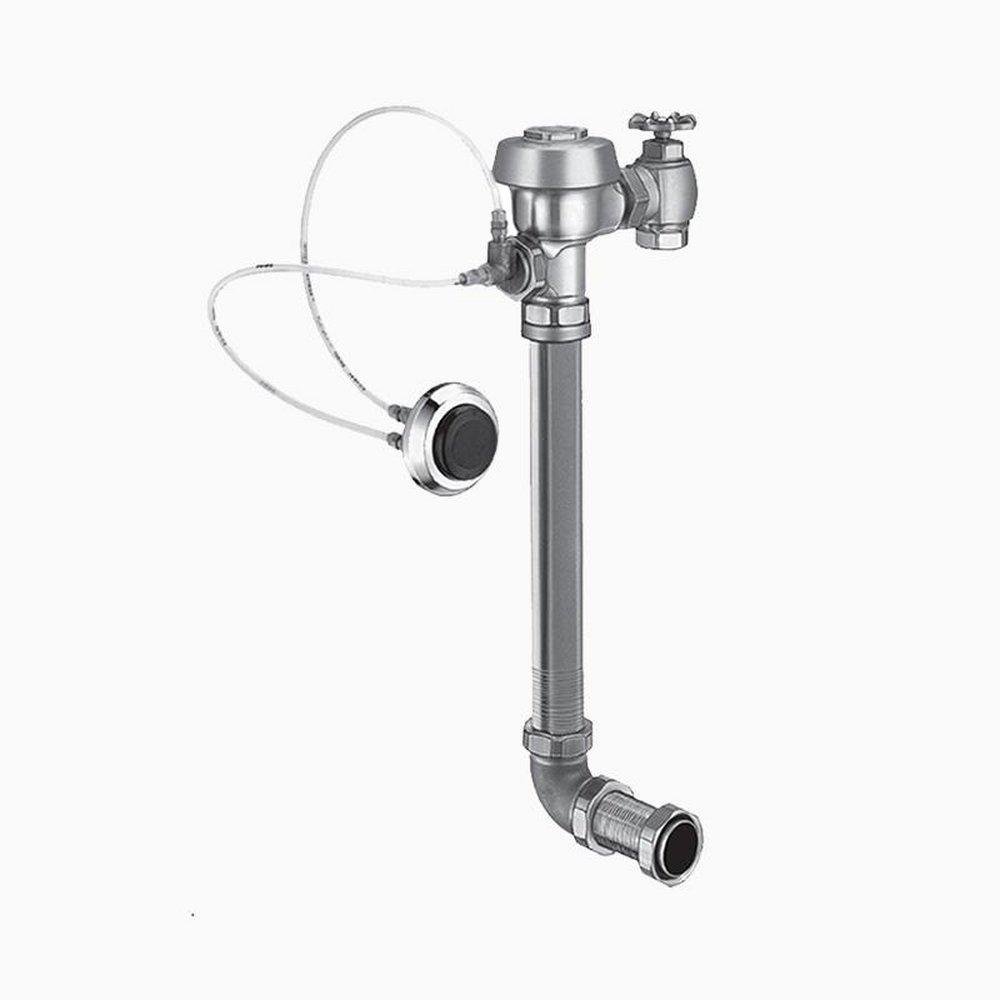

The SLOAN 3014801 Royal 952 2-10 3/4 Ldim is a concealed manual specialty water closet hydraulic flushometer. It features a non-hold-open handle, fixed metering bypass, and no external volume adjustment to ensure water conservation. Made from rough brass, the valve body complies with ASTM Alloy Classification for Semi-Red Brass and ASSE 1037.

• ADA-compliant, non-hold-open feature type actuator
• PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
• Vandal-resistant stop cap to facilitate security

Product Highlights

This manual concealed flushometer is designed for floor mount or wall hung water closets.

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3014801

Technical Specifications

• Category: Flushometer
• Volume: 0.413
• Fixture Mount: Wall
• Fixture Type: Water Closet
• Installation Place: Concealed
• Finish: Rough Brass
• Brand: Sloan
• Manufacturer: Sloan Valve Company
• Manufacturer #: 3014801
• Parts Town #: SLN3014801
• Units: Each
• Length: 14.125"
• Width: 11.875"
• Height: 4.25"
• UPC: 671254029958
• Flow Rate: 3.5 GPF
• Feature: Genuine OEM
• Model Name: Royal
• Model Number: ROYAL 952-3.5-2-10-3/4-LDIM
• Weight (lb): 8.949
• Package Quantity: Each
• ADA Compliant: Yes
• ANSI: ANSI A112.19.6
• ASME: ASME A112.19.6
• CSA Certified: Yes
• Collection: Royal
• Color Finish Category: Chromes
• Color Finish Name: Polished Chrome
• Flush Type: Manual
• Flush Valve Application: Water Closet
• IAPMO Listed: Yes
• Material: Semi-Red Brass
• Proposition 65: WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
• Spud Location: Top
• Spud Size: 1-1/2
• Valve Size: 1 in
• Flush Rate: 3.5 gpf
• Inlet Size: 1 in IPS
• Pressure Rating: 15 to 80 psi
• Spud Coupling: 1-1/2 in
• Connection Location: Top Spud
• Handle Type: Non-Hold Open
• Rough-In Size: 24 in
• Series: 952
• Type: Single-Flush
• Valve Design: Diaphragm
• Product Type: Closet Flushometer
