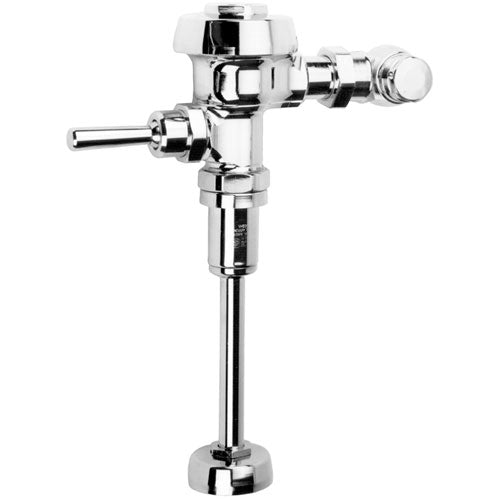

Sloan 3012600 Valve 1.5 GPF Urinal Flush Valve

Product Description

The Sloan 3012600 is a urinal flush valve designed for use with urinals. This model features a manual operation with a flow rate of 1.5 gallons per flush. Crafted from semi-red brass and finished with polished chrome, it provides reliable performance and durability.

• ADA-compliant non-hold-open handle prevents excessive flushing.
• Equipped with a diaphragm valve design for effective flush control.
• Durable construction ensures long-lasting use in commercial settings.

Product Highlights

The Sloan 3012600 flush valve is engineered for water conservation while maintaining high performance and reliability. It's ideal for retrofitting existing structures or new installations.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Model Number: 186

Technical Specifications

• Flush Rate: 1.5 gpf
• Material: Semi-Red Brass
• Finish: Polished Chrome
• Inlet Size: 3/4 inch IPS
• Spud Coupling: 3/4 inch
• Rough-In Size: 11-1/2 inches
• Connection Location: Top Spud
• Pressure Rating: 15-80 psi
