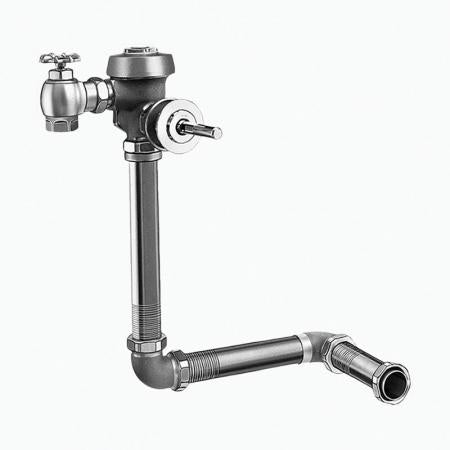

Sloan 3011350 Royal 143 7 3/4 Ldim single-flush valve

Product Description

The Sloan 3011350 Royal 143 7 3/4 Ldim is a manual concealed flushometer designed for use with wall-mounted water closet fixtures. This single-flush valve offers efficient operation with a flush rate of three point five gallons per flush and accommodates a variety of installation requirements. Features include a back spud connection and a durable diaphragm valve design.

• Flush volume starting from one point two eight gallons per flush.
• Constructed from semi-red brass to ensure long life and resistance to dezincification.
• Includes an adjustable tailpiece for flexible installation options.

Product Highlights

Precision flush control through CID technology lends to effective water conservation and compliance with ADA standards.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Model Series: 143

Technical Specifications

• Connection Location: Back Spud
• Flush Rate: 3.5 gpf
• Inlet Size: 1 in IPS
• Spud Coupling: 1-1/2 in
• Pressure Rating: 15 to 80 psi
• Fixture Type: Water Closet
• Handle Type: Non-Hold Open Oscillating
• Rough-In Size: 14-1/2 in
