Sloan 3010508 Royal 117 O YK 1 1/2 In OFST

Product Description

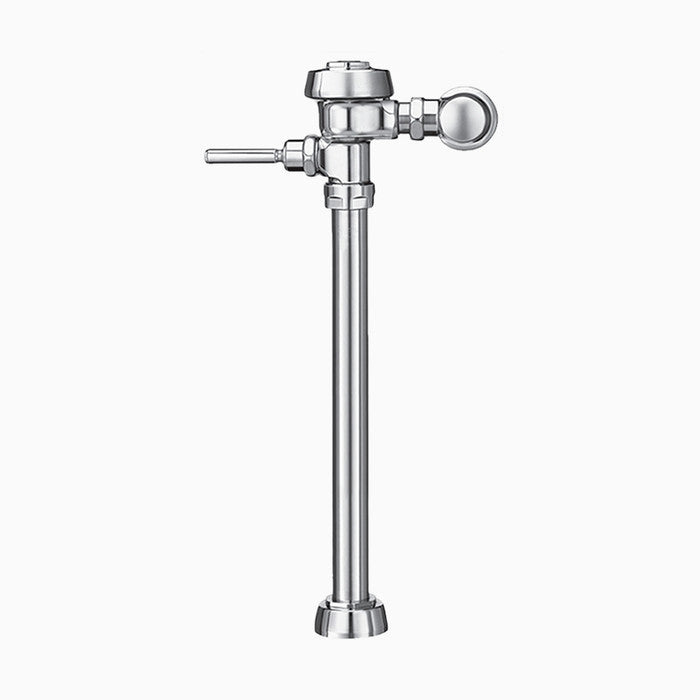

The Sloan Royal 117 O YK with part number 3010508 is a manual exposed flushometer designed for service sink fixtures. It features a single-flush mechanism with a standard flush volume of six point five gallons per flush (gpf). The inlet size is one inch IPS, and it comes with a one and a half inch spud coupling.

• Exposed service sink flushometer with a top spud connection
• Durable semi-red brass construction
• Pressure rating from fifteen to eighty psi

Product Highlights

This flushometer is compliant with ADA and BAA standards and is suitable for commercial plumbing applications. Its diaphragm valve design ensures reliable performance.

Product Information

Standard Information

• Manufacturer: Sloan Valve Co
• Series: 117

Technical Specifications

• Connection Location: Top Spud
• Flush Rate: 6.5 gpf
• Handle Type: Non-Hold Open Oscillating
• Inlet Size: 1 in IPS
• Material: Semi-Red Brass
• Rough-In Size: 24 in
• Spud Coupling: 1-1/2 in
• Valve Design: Diaphragm
• Domestic/Import: Domestic
• Finish/Color: Polished Chrome
• Fixture Type: Service Sink
• Pressure Rating: 15 to 80 psi
