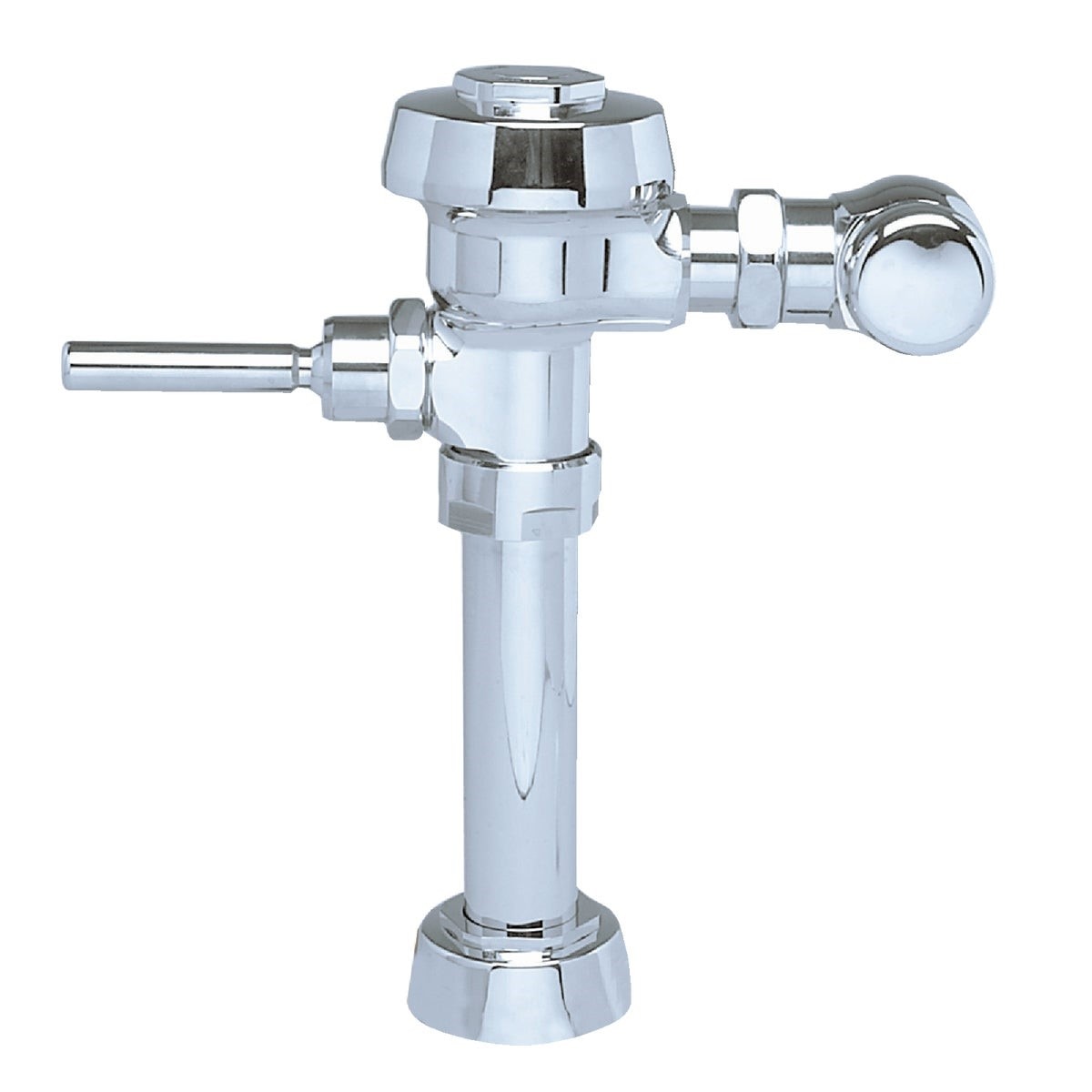

Sloan 3010100 Royal 110 3.5 GPF Flush Valve

Product Description

The Sloan 3010100 Royal 110 is a 3.5 GPF flush valve designed for floor mounted or wall hung top spud bowls. It is water saving with 3.5 gallons per flush. The flushometer features a 1" IPS screwdriver angle stop check and a dual-filtered by-pass diaphragm assembly.

• Water saving with 3.5 gallons per flush
• 1" IPS screwdriver angle stop check
• Dual-filtered by-pass diaphragm assembly

Product Highlights

This Sloan Royal flushometer is ideal for use with floor and wall-hung top spud bowls. Its vandal-resistant design withstands rough use and is made of solid brass for enhanced durability.

Product Information

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 3010100
• Country of Origin: US

Technical Specifications

• Brand: Sloan
• MPN: 3010100
• UOM: Each
• UPCCode: 00671254018167
• Country: US
• Model: 110
• Flush Volume: 3.5 gpf (4.8 Lpf)
• Finish: Polished Chrome (CP)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 1\u20442" (292mm)
• Spud Coupling: 1 1\u20442" (38mm)
• Supply Pipe: 1" (25mm)
• Type: Single-Flush
• Series: 110
• Material: Semi-Red Brass
• Flush Rate: 3.5 gpf
• Inlet Size: 1 in IPS
• Rough-In Size: 11-1/2 in
• Valve Design: Diaphragm
• Connection Location: Top Spud
• Handle Style: Non-Hold Open
• Domestic/Import: Domestic
