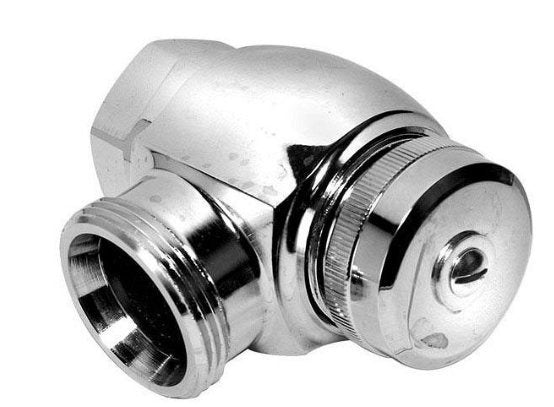

Sloan 0388007 Angle Stop Assembly 0.75 Inch Wheel Handle

Product Description

The SLOAN 0388007 is an angle stop assembly designed for use with commercial flushometer systems. It controls the water supply to the flush valve by allowing the technician to shut off or regulate flow at the point of connection without interrupting the broader water supply line. The assembly features a wheel handle for manual adjustment and an adjusting tailpiece that accommodates precise flow control. At 0.75 inches, it matches standard supply connections found in commercial restroom installations. Licensed plumbers and commercial fixture technicians are the primary installers of this component.

This angle stop assembly is suited for commercial plumbing installations where SLOAN flushometers are the specified flush valve. Typical applications include water closet and urinal flushometer rough-in work in commercial, institutional, and high-traffic restroom environments. The angle configuration positions the supply connection at 90 degrees relative to the inlet, making it appropriate for wall-mounted supply stubs. It is installed during rough-in or as a replacement part during service calls when the stop valve requires repair or upgrade.

Key Features

• Angle body configuration for wall-mounted supply stub connections
• 0.75 inch connection size matches standard commercial flushometer supply inlets
• Wheel handle design allows manual shutoff and flow adjustment without additional tools
• Adjusting tailpiece provides fine flow regulation to meet flushometer operating requirements
• Designed as a direct-fit stop assembly for flushometer supply line service

Compatibility

Designed as an OEM-style replacement angle stop assembly for commercial flushometer installations requiring a 0.75 inch angle stop with an adjusting tailpiece configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the building water supply or the nearest upstream isolation valve before removing the existing stop assembly. Inspect the supply stub threads for damage before installing the new assembly, and verify the tailpiece adjustment is set correctly before restoring water supply. Do not overtighten threaded connections, as this may damage the valve body or supply stub.

Technical Specifications

• Connection Size: 0.75 inches
• Stop Orientation: Angle
• Handle Type: Wheel Handle
• Tailpiece Type: Adjusting Tailpiece
• Weight: 1.23 pounds

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 0388007
