Product Description

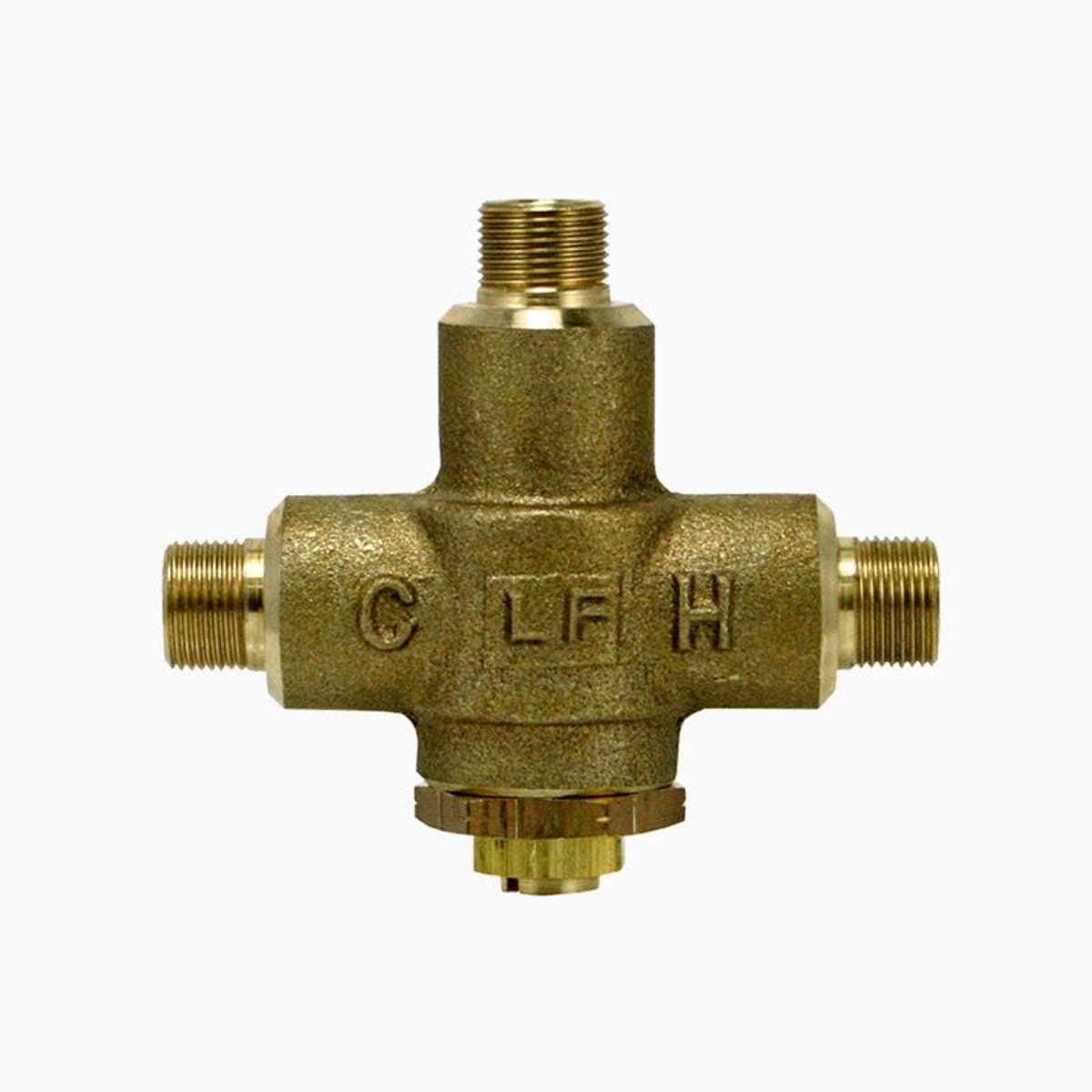

The Sloan 0326045PK is a thermostatic mixing valve designed for under-the-lavatory applications. It ensures a controlled outlet temperature of hot water, which enhances safety and efficiency. The valve maintains flow at four gallons per minute and operates effectively within a range of five to one hundred eighty degrees Fahrenheit.
- Installs in place of the Tee fitting supplied with the faucet prior to the solenoid valve.
- Equipped with integral check valves at inlets.
- Constructed from solid brass for durability.
Product Highlights
This thermostatic mixing valve quickly senses and compensates for temperature changes, making it suitable for both commercial and residential environments.
Product Information
Standard Information
-
Manufacturer: Sloan Valve Co
-
MPN: 0326045PK
Technical Specifications
-
Flow Capacity: 4 GPM
-
Pressure Rating: 125 psi
-
Temperature Range: 5 to 180 deg F
-
Body Material: Brass
-
Connection Type: Compression
-
Nominal Size: 3/8 in
-
ASSE Classification: 1070
-
UPC Listing: Yes
