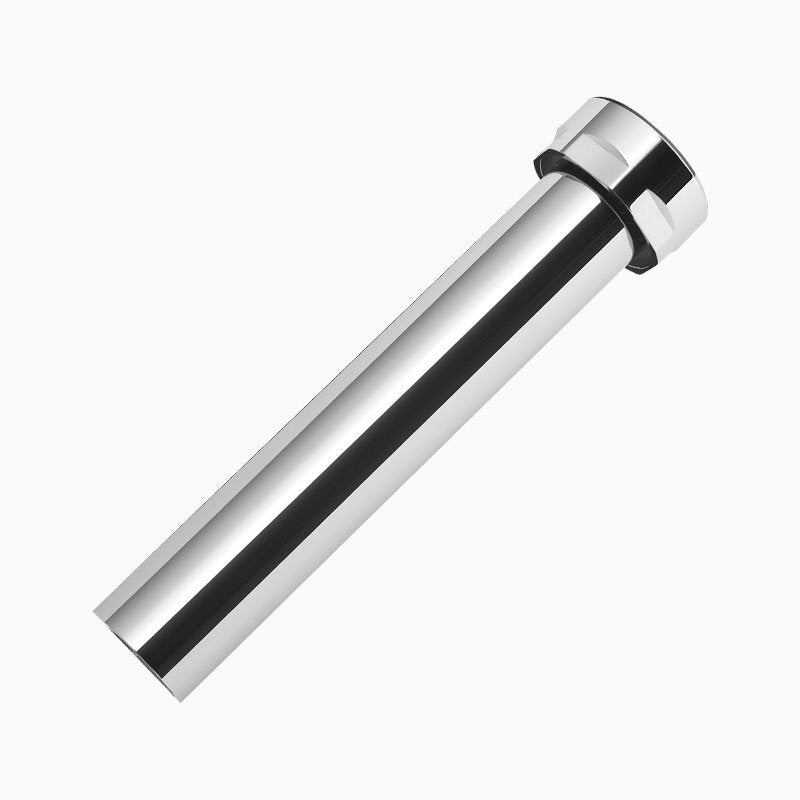

Sloan 0323230 Vacuum Breaker Valve 1.5 X 25.5 in 2-in Offset

Product Description

The SLOAN 0323230 is a vacuum breaker valve designed to prevent backflow and siphonage in commercial and institutional plumbing systems. Based on the model designation V500AA, this valve features a 1-1/2 inch by 25-1/2 inch body profile with a 2-inch offset configuration. Vacuum breaker valves of this type are installed on flush valve assemblies to protect potable water supplies from contamination caused by back-pressure or back-siphonage. Licensed plumbers and commercial plumbing contractors are the primary installers of this component.

This vacuum breaker valve is suited for commercial restroom and institutional plumbing applications where Sloan flush valve systems are in service. The chrome-plated (CP) finish makes it appropriate for exposed installations in public restrooms, locker rooms, healthcare facilities, and similar high-use environments. The 2-inch offset accommodates specific rough-in conditions where a standard straight configuration would not align with the fixture connection.

Key Features

• 1-1/2 inch by 25-1/2 inch body dimensions suit specific flush valve rough-in requirements
• 2-inch offset configuration accommodates non-standard rough-in alignments
• Chrome-plated finish suitable for exposed commercial plumbing installations
• Vacuum breaker design prevents backflow and back-siphonage in flush valve systems
• Lightweight at 1.66 pounds for straightforward field handling

Compatibility

Designed as an OEM-style replacement vacuum breaker valve for Sloan V500AA flush valve assemblies in commercial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before removing the existing vacuum breaker or flush valve components. Inspect all mating threads and sealing surfaces before reinstalling. Do not overtighten threaded connections on chrome-plated components, as this can damage the finish and sealing surfaces.

Technical Specifications

• Body Dimensions: 1-1/2 x 25-1/2 inches
• Offset: 2 inches
• Finish: Chrome Plated (CP)
• Weight: 1.66 pounds
• UPC Code: 671254014381

Standard Information

• Brand: SLOAN
• Manufacturer Part Number: 0323230
