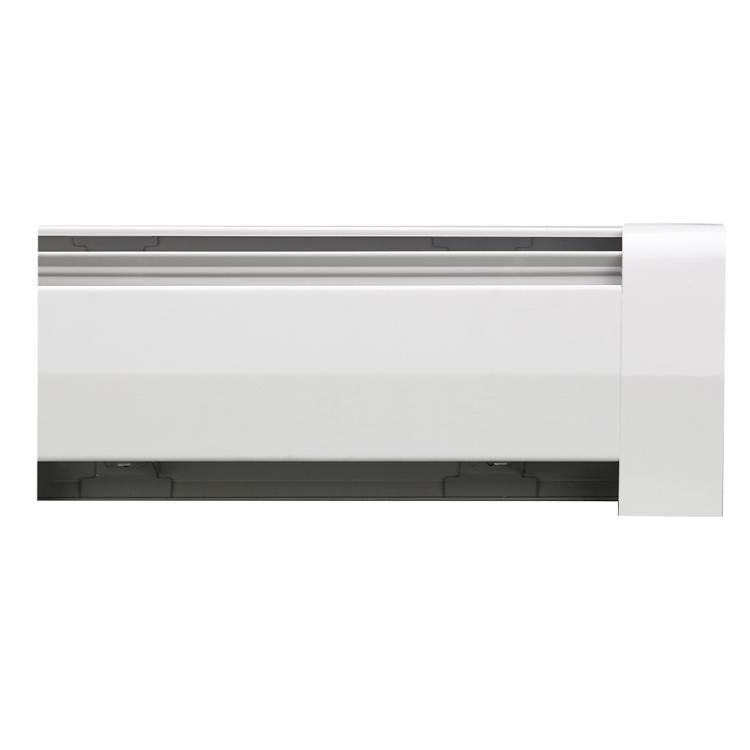

Slant-fin 57188201080 Baseboard Enclosure 8 Ft Nu-white

Product Description

The SLANT-FIN 57188201080 is an 8-foot baseboard enclosure in Nu-White finish, sold without a heating element, and designed for residential and light commercial hydronic or steam heating systems. The enclosure accepts any of five interchangeable H-Series Slant-FIN heating elements, giving installers flexibility to match the output to the load. At 9-1/8 inches tall and 3-3/4 inches deep, the cabinet fits standard baseboard wall space while delivering outputs ranging from 590 to 790 BTU/h per foot at 180 degrees F and 1 GPM. A pivot-mounted, fully modulating damper provides individual room temperature control without additional hardware.

This enclosure is suited for single-family residential new construction, retrofits, and light commercial applications where wall space is limited or higher output density is required. It works as a primary heat emitter or as a supplement to existing baseboard in areas that need additional capacity. The extendable accessories allow wall-to-wall installation without field cutting, keeping the finished appearance clean. Flared element tubes simplify joining multiple sections on longer loop runs, and the design supports higher water velocities, lower pump loads, and extended loop runs compared to standard residential baseboard enclosures.

Key Features

• Accepts five interchangeable H-Series Slant-FIN heating elements for hot water or steam applications
• Fully modulating, pivot-mounted damper for individual room temperature control
• Flared element tubes allow easy section joining on multi-section runs
• Extendable accessories provide wall-to-wall fit without cutting
• High-strength support brackets and no-noise expansion cradles included
• 2-inch floor-to-front cover opening promotes convective air circulation
• Shipped fully assembled to reduce installation time

Compatibility

Designed to accept SLANT-FIN H-Series heating elements and compatible with residential and light commercial hot water or steam baseboard heating systems. Available in lengths from 2 feet to 10 feet; this SKU is the 8-foot length.

Installation Notes

Installation should be performed by a licensed plumber or hydronic heating technician familiar with IFGC and local mechanical codes. Shut down the boiler and depressurize the system before removing or replacing any baseboard components. Ensure the heating element is fully seated and section joints are secure before restoring system pressure. Do not operate without the element installed, as the enclosure alone does not provide heat output.

Technical Specifications

• Output: 590 to 790 BTU/h per foot at 180 degrees F, 1 GPM
• Height: 9-1/8 inches
• Depth: 3-3/4 inches
• Length: 8 feet
• Available Lengths: 2 feet to 10 feet
• Finish: Nu-White
• Application: Residential and light commercial hot water or steam baseboard heating
• Country of Origin: USA

Standard Information

• Brand: SLANT-FIN
• Manufacturer Part Number: 57188201080
