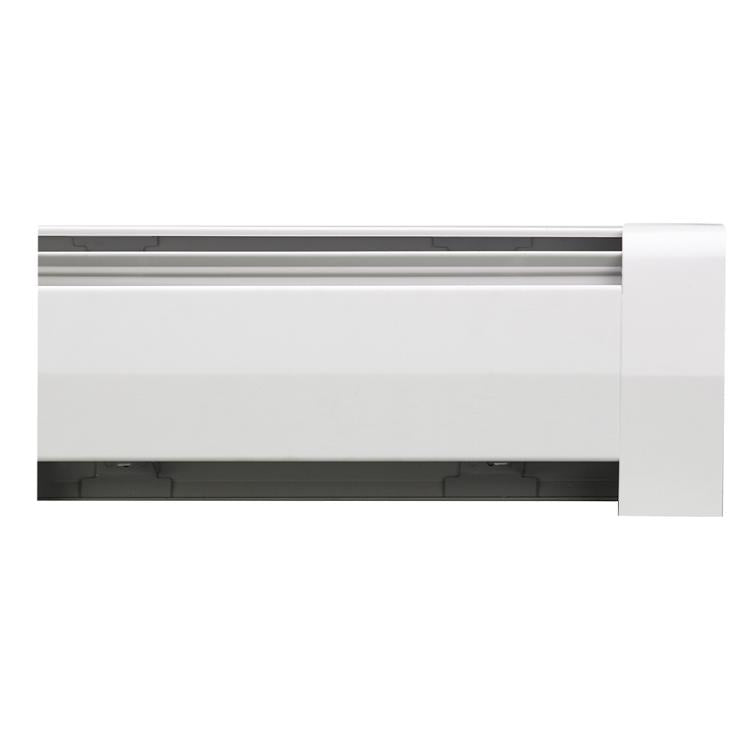

Slant-fin 57188201060 Baseboard Enclosure 6 Foot Nu-white

Product Description

The SLANT-FIN 57188201060 is a 6-foot baseboard heating enclosure in Nu-White finish, designed for use with the Multi/Pak 88 baseboard heating system. This enclosure-only unit accepts five interchangeable H-Series Slant/Fin heating elements for hot water or steam applications, making it adaptable to a wide range of heating configurations. Manufactured in the USA, it ships fully assembled for fast installation. A pivot-mounted, fully modulating damper allows individual room temperature control, while high-strength support brackets and no-noise expansion cradles ensure a durable, quiet installation. Output ranges from 590 to 790 BTU/h per foot at 180 degrees F and 1 GPM.

The 57188201060 enclosure is suited for deluxe residential and light commercial baseboard heating installations, including single-family homes, renovations, and light commercial spaces where wall space is limited and higher heat output is required. It supports higher water velocities, lower pump loads, and longer loop runs, making it a practical choice for extended hydronic systems. Flared element tubes simplify joining sections, and extendable accessories allow wall-to-wall fit without cutting for a clean finished appearance.

Key Features

• Accepts five interchangeable H-Series heating elements for hot water or steam
• Fully modulating, pivot-mounted damper for individual room temperature control
• High-strength support brackets and no-noise expansion cradles for quiet, stable operation
• 2-inch floor-to-front cover opening promotes convection airflow
• Extendable accessories allow wall-to-wall fit with no cutting required
• Flared element tubes facilitate joining of sections
• Ships fully assembled for fast, straightforward installation

Compatibility

Designed for use with the Slant/Fin Multi/Pak 88 baseboard heating system and compatible with H-Series Slant/Fin heating elements for hot water or steam applications in residential and light commercial settings.

Installation Notes

Installation should be performed by a licensed plumber or hydronic heating technician. Shut down and depressurize the heating system and allow it to cool before working on or near any baseboard components. Follow applicable local mechanical codes and manufacturer guidelines when connecting to hot water or steam supply lines. The enclosure ships fully assembled, but verify all brackets and expansion cradles are properly seated before securing to the wall.

Technical Specifications

• Output: 590 to 790 BTU/h per foot at 180 degrees F and 1 GPM
• Height: 9.125 inches
• Depth: 3.75 inches
• Length: 6 feet
• Available Lengths: 2 to 10 feet
• Application: Residential and light commercial hot water or steam baseboard heating
• Finish: Nu-White
• Country of Origin: USA

Standard Information

• Brand: SLANT-FIN
• Manufacturer Part Number: 57188201060
