Slant-fin 57188201030 Baseboard Enclosure 3 Ft Nu-white

Product Description

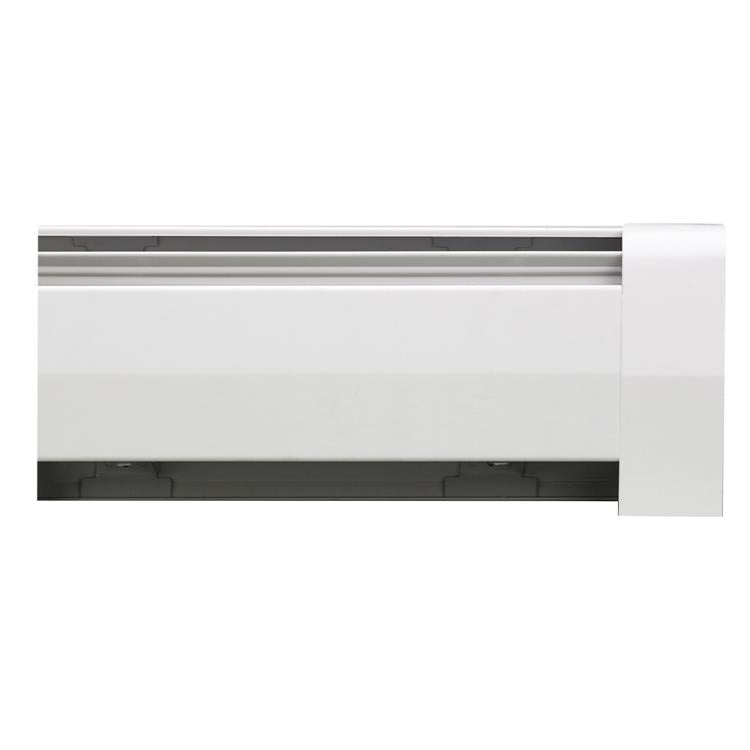

The SLANT-FIN 57188201030 is a 3-foot baseboard enclosure in Nu-White finish, designed for residential and light commercial hydronic heating systems. Sold as an enclosure only, it is compatible with the Multi/Pak 88 product line and accepts five interchangeable H-Series heating elements for hot water or steam service. The enclosure delivers an output range of 590 to 790 BTU/h per foot at 180 degrees F and 1 GPM flow rate. A fully modulating, pivot-mounted damper allows individual room temperature control. Licensed plumbers and HVAC technicians are the primary installers for this type of baseboard heating equipment.

This enclosure is suited for single-family residential installations, renovation projects, and light commercial applications where wall space is limited and higher heating output is required. It performs well as a primary baseboard heating solution or as a supplement to existing baseboard systems. The design supports higher water velocities, lower pump loads, and longer loop runs, making it practical for more demanding hydronic system layouts.

Key Features

• Output range of 590 to 790 BTU/h per foot at 180 degrees F and 1 GPM
• Fully modulating, pivot-mounted damper for individual room temperature control
• 2-inch floor-to-front cover opening promotes air circulation for effective convection heating
• Flared element tubes facilitate joining of multiple sections
• Extendable accessories allow wall-to-wall fit without cutting for a clean finished appearance
• Shipped fully assembled for fast installation
• Made in the USA

Compatibility

Designed for use with the SLANT-FIN Multi/Pak 88 baseboard heating system, accepting five interchangeable H-Series Slant/Fin heating elements for hot water or steam applications in residential and light commercial settings.

Installation Notes

Installation is typically performed by a licensed plumber or HVAC technician familiar with hydronic baseboard heating systems. Shut down the boiler and depressurize the system before removing or replacing any baseboard components. Verify that the heating element and enclosure lengths are matched correctly before securing the enclosure to the wall. Follow all applicable local mechanical codes and manufacturer instructions for proper mounting and element connection.

Technical Specifications

• Output: 590 to 790 BTU/h per foot at 180 degrees F and 1 GPM
• Height: 9.125 inches
• Depth: 3.75 inches
• Length: 3 feet
• Available Lengths: 2 to 10 feet
• Application: Residential and light commercial hot water or steam baseboard heating
• Finish: Nu-White
• Country of Origin: USA

Standard Information

• Brand: SLANT-FIN
• Manufacturer Part Number: 57188201030
