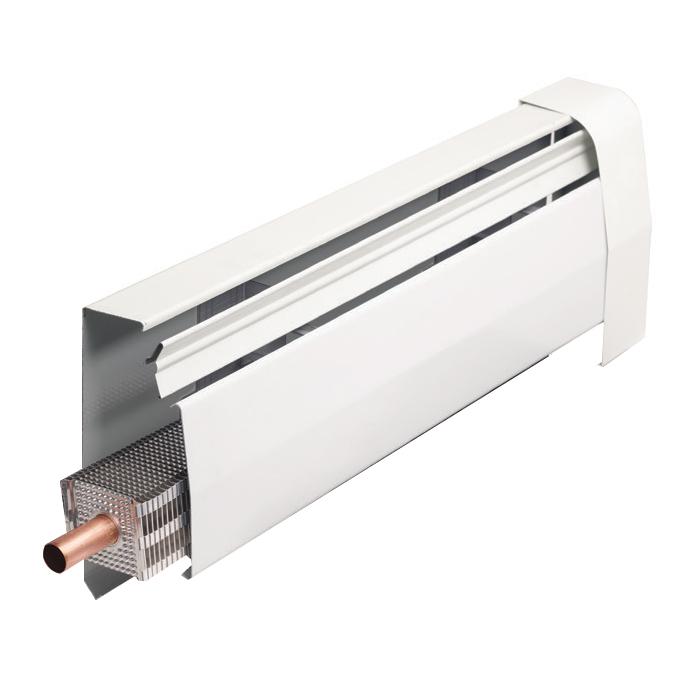

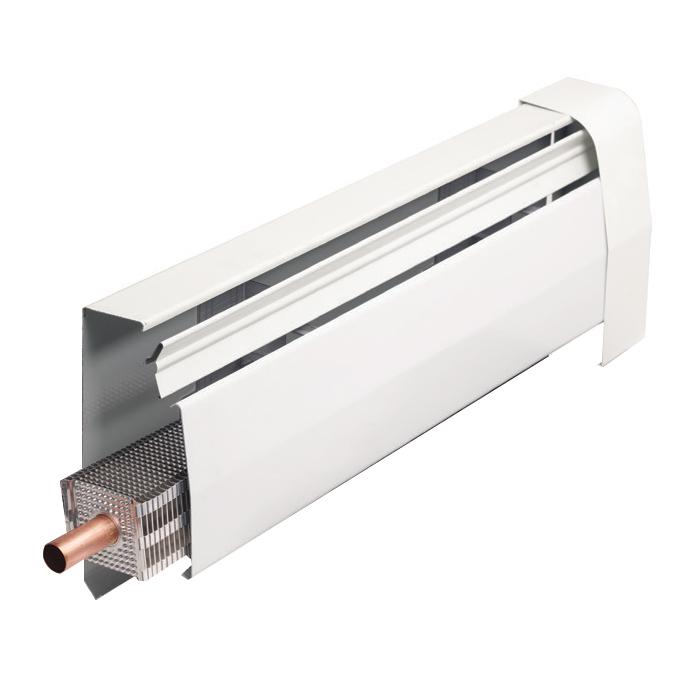

Slant-fin 57188101050 Baseboard Heater 5 Foot Nu-white

Product Description

The SLANT-FIN 57188101050 is a 5-foot hydronic baseboard heater from the Multi/Pak 88 series, designed for residential and light commercial hot water or steam heating systems. It ships fully assembled with a 3/4-inch H3 heating element in a Nu-White finish. Output ranges from 590 to 790 BTU/h per foot at 180 degrees F and 1 GPM flow, making it well-suited for zones requiring reliable convective heat in limited wall space. Licensed plumbers and HVAC technicians are the primary installers. The pivot-mounted damper is fully modulating, allowing individual room temperature adjustment without additional controls or damper hardware.

This unit fits single-family residential renovations and light commercial applications where wall space is limited or higher output than standard baseboard is needed. The 2-inch floor-to-front cover opening promotes natural air circulation for effective convection. Extendable accessories allow wall-to-wall installation without field cutting. Flared element tubes facilitate joining multiple sections in longer runs, and the design supports higher water velocities, lower pump loads, and longer loop runs compared to standard residential baseboard.

Key Features

• Output of 590 to 790 BTU/h per foot at 180 degrees F and 1 GPM
• Fully modulating, pivot-mounted damper for individual room temperature control
• 3/4-inch H3 heating element compatible with hot water or steam systems
• Flared element tubes for easy section joining and loop extension
• Extendable accessories provide wall-to-wall fit without cutting
• Ships fully assembled for fast installation
• High-strength support brackets and no-noise expansion cradles included

Compatibility

Designed for use with hot water or steam baseboard heating systems in residential and light commercial applications. Compatible with Slant/Fin H-Series heating elements. Suitable as a standalone zone heater or as a supplement to existing Slant/Fin residential baseboard installations.

Installation Notes

Installation is typically performed by a licensed plumber or hydronic heating technician. Shut off the boiler and isolate the zone circuit before making any pipe connections. Follow local mechanical codes and IFGC or IPC requirements for hydronic system piping and support. Do not energize the system until all connections are pressure-tested and confirmed leak-free.

Technical Specifications

• Output: 590 to 790 BTU/h per foot at 180 degrees F and 1 GPM
• Length: 5 feet
• Height: 9.125 inches
• Depth: 3.75 inches
• Element Size: 3/4 inch H3
• Finish: Nu-White
• Application: Residential and light commercial hot water or steam baseboard heating
• Country of Origin: USA

Standard Information

• Brand: SLANT-FIN
• Manufacturer Part Number: 57188101050
