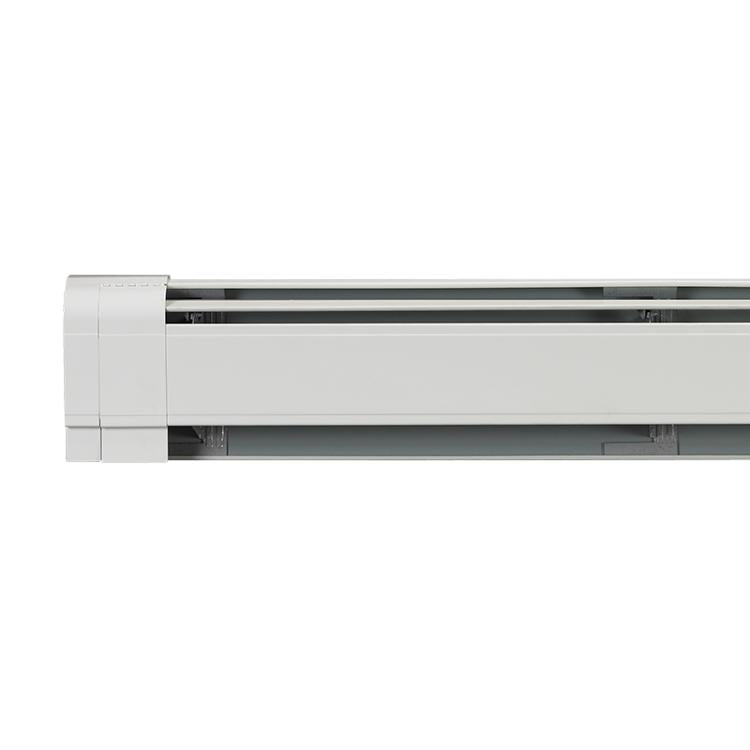

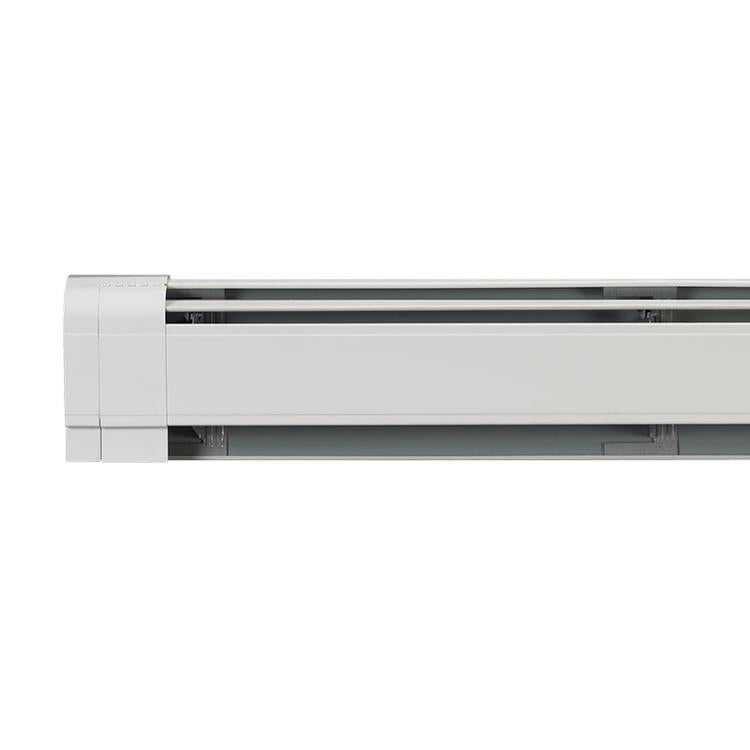

Slant-fin 104-003-050 Baseboard Enclosure 5 Foot White

Product Description

The SLANT-FIN 104-003-050 is a 5-foot baseboard enclosure designed for hot water baseboard heating systems. It ships as a complete enclosure assembly consisting of a back panel, front panel, damper vane, and support brackets. The back panel is formed from cold rolled steel with channels along the full length of the top and bottom edges to receive full-height support brackets. The damper vane modulates fully and holds any position through its arc, allowing the installer or end user to control airflow without additional hardware. All cover components are finished in Nu-White thermosetting polyester enamel. Support brackets carry an electro-galvanized finish for corrosion resistance.

This enclosure is sized for residential and light-commercial hot water baseboard heating applications. It is designed for use with SLANT-FIN 2000 and Base/Line series baseboard heating elements. The enclosure provides a finished appearance over the heating element and fin-tube assembly while allowing damper-controlled air delivery. Licensed plumbing and heating contractors typically install this component as part of a new baseboard installation or as a replacement enclosure on an existing system.

Key Features

• 5-foot length fits standard residential baseboard heating runs
• Cold rolled steel construction with electro-galvanized support brackets for durability
• Full-arc damper vane modulates and retains any position without fasteners
• Back panel channels along entire length accept full-height support brackets
• Nu-White thermosetting polyester enamel finish on all cover components
• Complete assembly: back panel, front panel, damper vane, and support brackets included

Compatibility

Designed for use with SLANT-FIN 2000 and Base/Line series hot water baseboard heating elements.

Installation Notes

Installation is typically performed by a licensed plumbing or heating contractor. Shut down the hydronic heating system and allow all components to cool before removing or replacing any baseboard enclosure. Ensure the back panel channels are fully engaged with the support brackets before securing the front panel. Follow all applicable local mechanical codes during installation.

Technical Specifications

• Length: 5 feet
• Material: Cold Rolled Steel
• Bracket Finish: Electro-Galvanized
• Cover Finish: Nu-White Thermosetting Polyester Enamel
• Application: Hot Water Baseboard
• Compatible Series: 2000, Base/Line

Standard Information

• Brand: SLANT-FIN
• Manufacturer Part Number: 104-003-050
