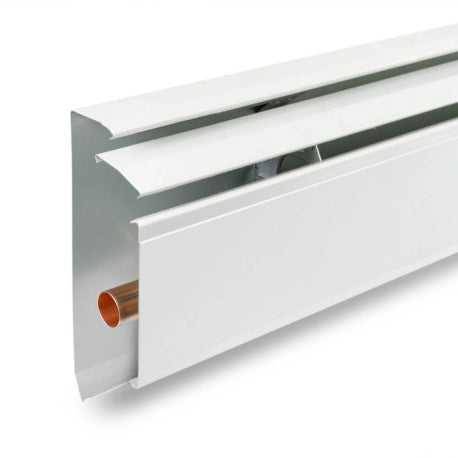

Slant-Fin 104-002-040 Base/Line 2000 Baseboard 4ft (3/4 inches)

Product Description

The Slant-Fin 104-002-040 is a 4ft long complete Base/Line 2000 series baseboard assembly. It delivers up to 600 BTU's/ft of length at 180°F standard, at 4 GPM. This baseboard comes with a pre-installed 3/4" (E-75) aluminum finned copper element and is fully assembled and ready to install. End caps are sold separately.

• Up to 600 BTU's/ft of length (180°F standard, at 4 GPM)
• Comes with pre-installed 3/4" (E-75) aluminum finned copper element
• Fully assembled and ready to install

Product Highlights

The Slant-Fin Base/Line 2000 series baseboard is economically priced without sacrificing functionality and is very quiet.

Product Information

Standard Information

• Brand: SLANT-FIN
• Manufacturer Part Number: 104-002-040
• Country of Origin: USA

Technical Specifications

• Total length: 48"
• Height: 7-5/16"
• Depth (front cover to wall): 2-11/16"
• Heating Element: E-75 (3/4" sweat), included - with 2-5/16" x 2-1/8" aluminum fins, spaced 55 pcs/ft
• BTU's: varies by supply temperature and flow rate - averages ~600 BTUh per linear ft (180°F temperature @ 4GPM)
• Enclosure & brackets material: galvanized steel
• Front panel thickness: 23-gauge
• Finish: Nu-white enamel
• Type: Baseboard
• SubType: Complete
• MPN: 104-002-040
• ABRPN: 104-002-040
• Series: Base/Line 2000
• Brand: Slantfin
• Residential Or Commercial: Residential
• Medium: Hot Water
• Connection Type: Sweat
• Mounting: Baseboard
• Hydronic Output @ 180F (BTU): 2400
• Depth (In): 2.703125
• Height (In): 7.359375
• Width (In): 48
• Return Connection (In): 0.75
• Supply Connection (In): 0.75
