SLANT-FIN 103061070 H-1 Heating Element Jumbo Fins for Multi/Pak 80 7 ft

Product Description

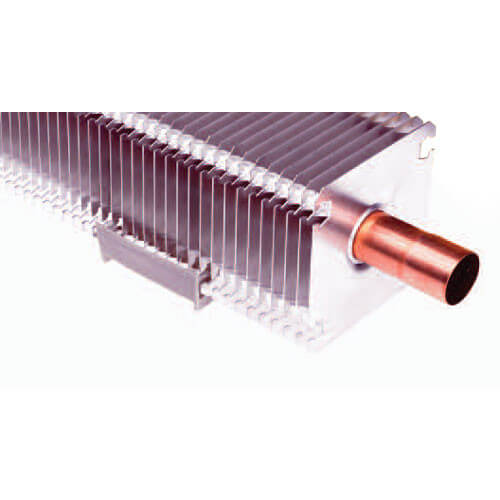

The SLANT-FIN 103061070 H-1 heating element is suitable for the Multi/Pak 80 series. This unit features three quarter inch nominal copper tubing with aluminum fins measuring three inches by three and one quarter inches and a thickness of point zero twenty-four inches. It is specifically designed with 48 fins per linear foot to optimize heating efficiently. The fins are mechanically bonded to the tubing, enhancing thermal contact. This heating element has a length of seven feet and is meant to fit within a universal heavy-duty Multi/Pak 80 enclosure, which must be purchased separately.

• Length of seven feet
• Made from copper and aluminum
• Designed for efficient heating in baseboard applications

Product Highlights

The heating element is designed for baseboard heating, ensuring efficient heat distribution across the space.

Product Information

Standard Information

• Type: Baseboard Element
• Application: Heating

Technical Specifications

• Length (Feet): 7
• Model: Multi/Pak 80
• Manufacturer: Slant Fin
• Series: Bare Elements
• Length (Inches): 84
• Material: Copper/Aluminum
• Fin Size: 3 Inch x 3-1/4 Inch x 0.024 Inch
• Fins per Foot: 48
• Tube Size: 3/4 Inch
