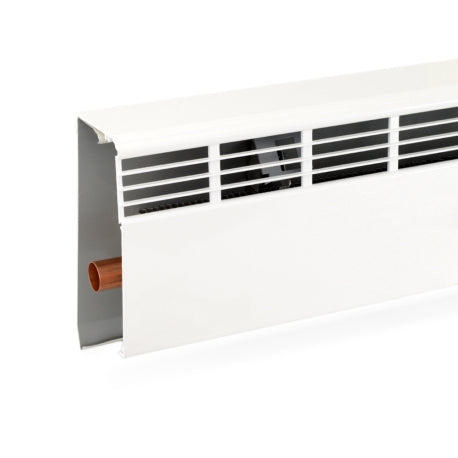

The SLANT-FIN 061-000-040 Revital/Line series offers a DIY solution for updating baseboards. Designed for easy installation, the cover slides over the existing back panel after removing the front panel, damper, and end caps. Constructed from aluminum, it ensures efficient heat transfer and rust resistance, suitable for various environments.
Made in the USA from heavy-gauge extruded recycled aluminum
Up to 40% more heat output than leading competitor
Compatible with most brands of hydronic baseboards, including Slant/Fin, Argo, Mestek, Embassy, Sterling, etc.
Product Highlights
Offers easy installation, superior heat transfer, and rust resistance. Ideal for moisture-rich environments.
Product Information
Standard Information
Brand: SLANT-FIN
Manufacturer Part Number: 061-000-040
Country of Origin: USA
Technical Specifications
Baseboard Cover Material
14-gauge extra heavy extruded aluminum
Parts Included
plastic spacers (prevent contact of heating element w/ baseboard cover & eliminate noise), metal L-brackets (optional, further stabilize baseboard cover & prevent its' removal when used with screws), self-drilling screws
Max. Existing Baseboard Dimensions
2-5/8" thick from wall (or back of baseboard) to the front of the heating element AND up to 6-1/16" height from top of baseboard to the bottom of the heating element (base of the supporting bracket) - confirm size using "Dimensional Drawings or Size Verification Guide" file under the Documents tab.
