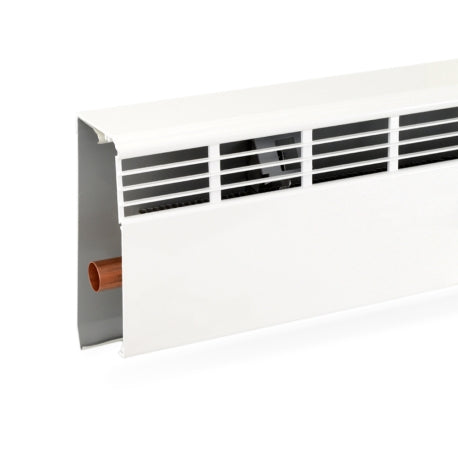

Slant-Fin 061-000-030 Revital/Line Universal Baseboard Replacement Cover 3ft

Product Description

The SLANT-FIN 061-000-030 Revital/Line series is a DIY solution for updating baseboards without special tools. Remove the old front panel, damper, and end caps, then slide the Revital/Line cover over the back panel and secure it with screws. Made with aluminum for efficient heat transfer and rust resistance, suitable for basements and humid climates.

• Made in the USA from heavy-gauge extruded recycled aluminum
• Up to 40% more heat output than leading competitor
• Compatible with most brands of hydronic baseboards, including Slant/Fin, Argo, Mestek, Embassy, Sterling, etc.

Product Highlights

Offers easy installation and is ideal for moisture-rich environments. Powder-coated with a durable, baked enamel-like finish.

Product Information

Standard Information

• Brand: SLANT-FIN
• Manufacturer Part Number: 061-000-030
• Country of Origin: USA

Technical Specifications

• Overall Dimensions: 36" long x 6-3/8" high x 3" deep (front to wall)
• Baseboard Cover Material: 14-gauge extra heavy extruded aluminum
• Parts Included: plastic spacers (prevent contact of heating element w/ baseboard cover & eliminate noise), metal L-brackets (optional, further stabilize baseboard cover & prevent its' removal when used with screws), self-drilling screws
• Max. Existing Baseboard Dimensions: 2-5/8" thick from wall (or back of baseboard) to the front of the heating element AND up to 6-1/16" height from top of baseboard to the bottom of the heating element (base of the supporting bracket) - confirm size using "Dimensional Drawings or Size Verification Guide" file under the Documents tab.
• Model Number: 061-000-030
• Manufacturer: Slant-Fin
• Manufacturer Part Number: 061-000-030
