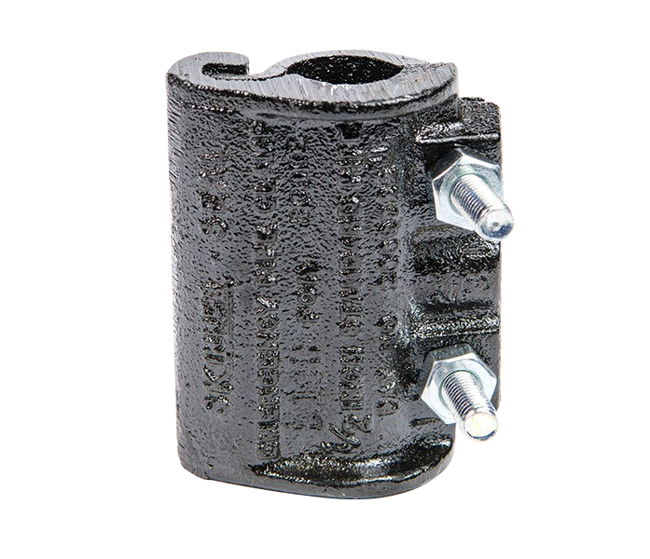

Skinner 089881 Emergency Pipe Clamp

Product Description

The Skinner 089881 Emergency Pipe Clamp is effective for repairs on pit holes, splits, and corrosion leaks in steel and cast iron pipes. It is made of ductile iron and features electroplated Grade 5 steel bolts. The E-coating provides rust resistance, and it is equipped with Buna-N gaskets. This clamp is suitable for pipes that carry gas, water, oil, or ammonia. The design includes a long, open hinge which allows for easy installation in tight spaces.

• Repairs damage in pipelines including pit holes and corrosion.
• Made from durable ductile iron with Grade 5 steel bolts.
• Operates efficiently at temperatures up to 250 degrees Fahrenheit.

Product Highlights

Ideal for emergency repairs on various pipeline systems.

Product Information

Standard Information

• Brand: The Skinner Company

Technical Specifications

• Size Pipe, IPS (inches): 1/2, 3/4, 1, 1.5, 2, 3
• Length (inches): 3.125, 3.25, 3.444, 4.25, 4.5
• Width (inches): 1.75, 2.375, 2.75, 3.125
• Bolt Diameter (inches): 0.3125, 0.375
• Bolt Length (inches): 2.25, 3.5
• Number of Bolts: 2
