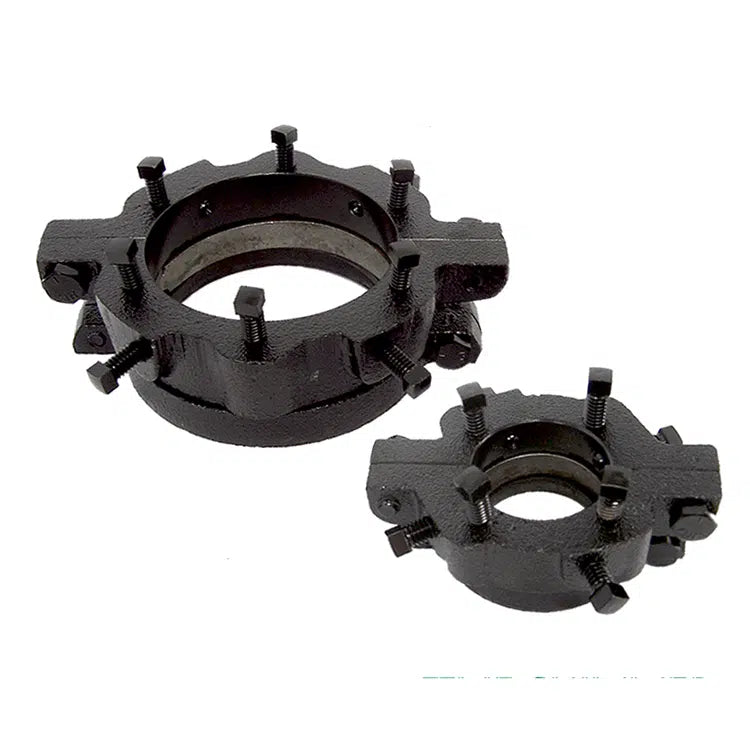

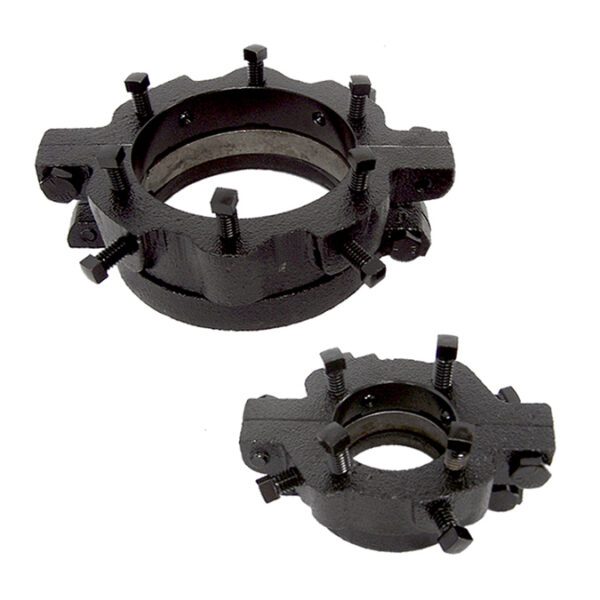

SKINNER 089858 Pipe Joint Clamp

Product Description

The SKINNER 089858 Pipe Joint Clamp is designed to effectively prevent leaks at joints in pipes and fittings. This clamp can be installed while the system is under pressure, making it a reliable option for real-time repairs. The design facilitates pressure from the thrust screws to be applied to the gasket, enabling it to seal tightly into the threads to stop leaks. It is suitable for a variety of applications including gas, oil, gasoline, water, ammonia, and brine.

• Stops leaks at pipe and fitting joints.
• Enables installation under pressure.
• Features a Neoprene gasket for strong sealing.

Product Highlights

The SKINNER Clamp provides a fast and effective solution for maintaining leak-free pipe connections, ensuring systems can operate smoothly without costly downtime.

Product Information

Standard Information

• Brand: SKINNER
• MPN: 089858

Technical Specifications

• Manufacturer Part Number: 89858
• Body Material: Iron
• Gasket Material: Neoprene Material Grade K2242 ASTM D2000/SAE J200
• Hardware Material: SAE Grade 5, Zinc Plated C-1541 Steel
• E Coating: JDM F11T3 18 Mill Thickness
• Pipe Size: 1/2 - 6
• Length: 2-21/2
• Width: 11/4 - 13/4
• Overall Diameter: 31/2-93/4
• Gasket Temperature Range: -40°F - 250°F
• Gasket Durometer: 45 ±5
• Gasket Tensile Strength: 1200
• Gasket Elongation: 300%
• Gasket Size: 3
