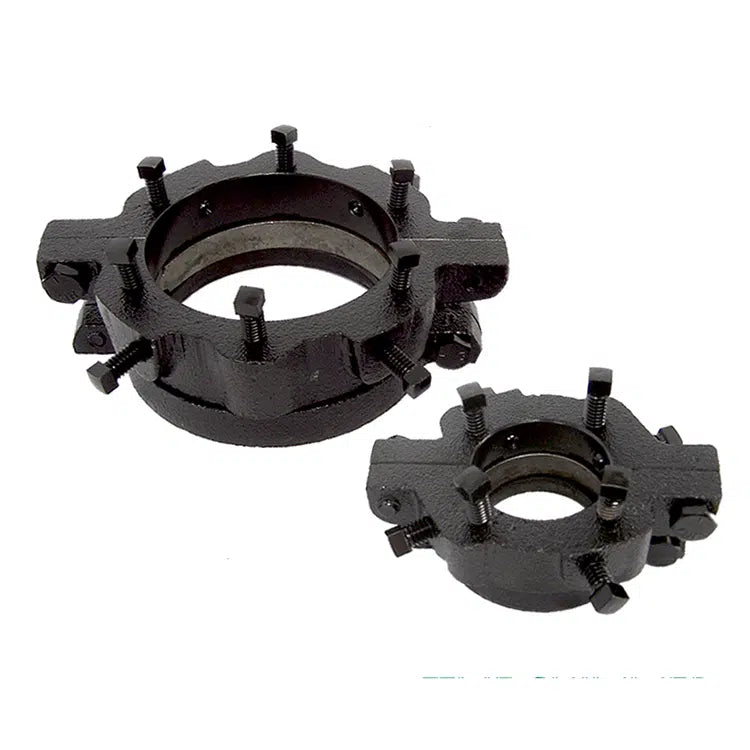

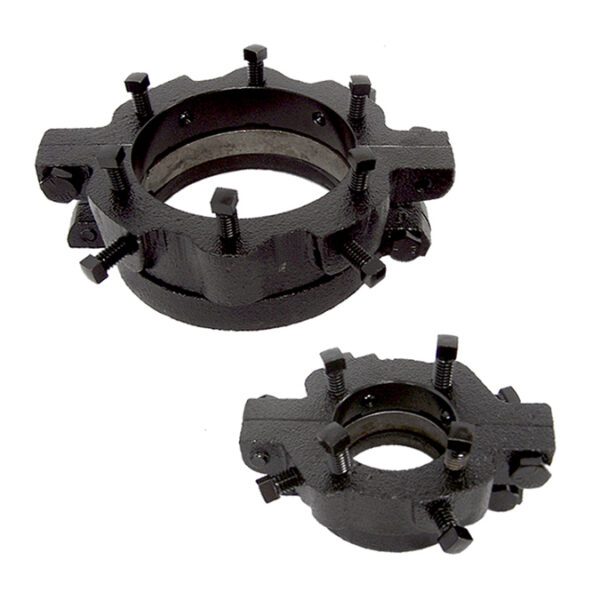

SKINNER 089856 Pipe Joint Clamp

Product Description

The SKINNER 089856 Pipe Joint Clamp is a reliable solution for preventing leaks at pipe and fitting joints. This product can be installed even while the system remains pressurized, making it an effective choice for urgent repairs. The design utilizes thrust screws to direct pressure onto the gasket, ensuring a secure fit that effectively prevents leaks. It is ideal for various applications, including gas, oil, gasoline, water, ammonia, and brine.

• Stops leaks at joints where pipe and fitting join.
• Quickly installs under pressure.
• Features a Neoprene gasket.

Product Highlights

This clamp is easy to use and provides immediate results. It is a strong and durable option suitable for multiple types of fluids.

Product Information

Standard Information

• Brand: SKINNER
• MPN: 089856

Technical Specifications

• Body: Iron
• Gasket: -40°F to 250°F, Durometer 45 ±5, Tensile 1200, Elongation 300%, Neoprene Material Grade K2242 ASTM D2000/SAE J200
• Hardware: SAE Grade 5, Zinc Plated C-1541 Steel
• E Coating: JDM F11T3, 18 Mill Thickness
• Pipe Size (inches): 1½ to 6
• Length A (inches): 2-21/2
• Width B (inches): 11/4 to 13/4
• Diameter Overall (inches): 31/2 to 93/4
• SKU: 89856
• Gasket Size: 4
