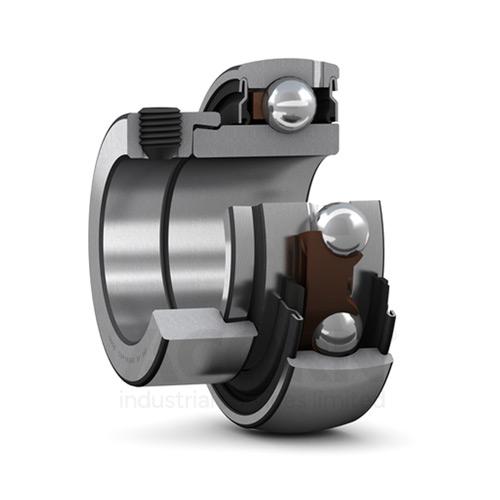

SKF YET203-010 Ball Insert Bearing - Cylindrical Bore, 5/8 in ID, Eccentric Collar Locking

Product Description

The SKF YET203-010 is a ball insert bearing designed for various mechanical applications. It features a cylindrical bore with a diameter of five-eighths of an inch and an eccentric collar locking mechanism.

• Eccentric collar locking device
• Stainless steel bearing material
• Overall width of one point one two six zero inches

Product Highlights

This bearing is suitable for high-load applications due to its radial static load capacity of four point seventy-five kilonewtons and dynamic load capacity of nine point fifty-six kilonewtons.

Product Information

Standard Information

• Brand: SKF
• MPN: YET203-010

Technical Specifications

• Weight: 0.26 lbs
• Bore Type: Cylindrical
• Bore Diameter: 5/8 in
• Overall Width: 1.1260 in
• Finish Coating: Zinc Plated
• Locking Device: Eccentric Collar
• Bearing Material: Stainless Steel
• Inner Ring Width: 0.7520 in
• Outer Ring Width: 0.4724 in
• Outside Diameter: 1.5748 in
• Radial Static Load Capacity: 4.75 kN
• Radial Dynamic Load Capacity: 9.56 kN
