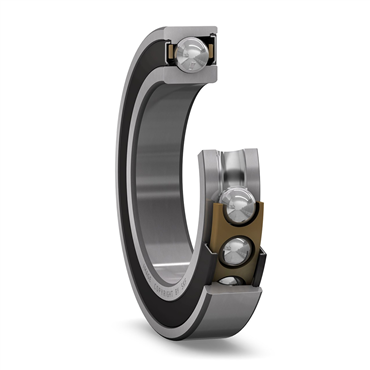

SKF S7010CD/P4ADGA | Cylindrical Bore Angular Contact Ball Bearing

Product Description

The SKF S7010CD/P4ADGA is a cylindrical bore angular contact ball bearing designed for precision applications. This unmounted bearing features an inner diameter of one point nine seven inches and an outer diameter of three point one five inches. It is ideal for use in various industrial machinery where high precision and performance are critical.

• Angular contact design for high load capacity
• Sealed on both sides to protect against contaminants
• Cylindrical outer diameter for easy installation

Product Highlights

The SKF S7010CD/P4ADGA is widely used in spindle applications and supports high radial and axial loads. Its steel construction ensures durability.

Product Information

Standard Information

• Brand: SKF
• Part Number: S7010CD/P4ADGA

Technical Specifications

• Inner Diameter: 1.97 inches
• Outer Diameter: 3.15 inches
• Width: 1.26 inches
• Material: Bearing Steel
• Closure Type: Sealed
• Outer Ring Width: 1.26 inches
• Contact Angle: 15 degrees
