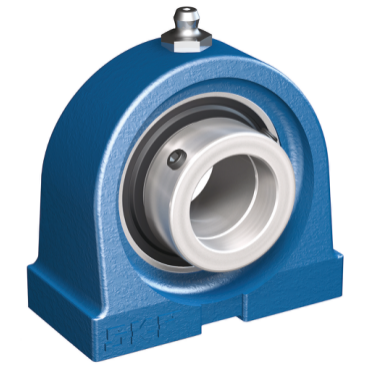

SKF P2BT107-TF Standard-Duty Cast Iron Tapped Base Pillow Block

Product Description

The SKF P2BT107-TF is a standard-duty cast iron tapped base pillow block. This bearing unit supports radial loads and performs well in various applications.

• Optimized for radial loads
• Narrow width for tight installation spaces
• Made with durable cast iron material

Product Highlights

This pillow block is designed for efficient operation in limited spaces and is suitable for conveyor applications.

Product Information

Standard Information

• Brand: SKF
• MPN: P2BT107-TF

Technical Specifications

• Series: P2BT
• Mounted Unit Duty: Standard-Duty
• Size Code: 107
• Shaft Diameter: 1 7/16 inches
• Housing Length: 4 1/4 inches
• Overall Width: 1.874 inches
• Dynamic Capacity: 5730 lbf
• Weight: 2.866 LB
• Locking Device: Setscrew Locking Collar
• Bearing Type: Ball Bearing
• Housing Material: Cast Iron
• Sealing: Seal On Both Sides
