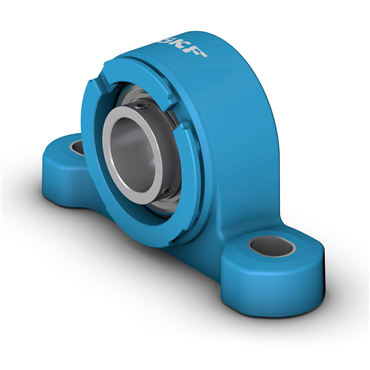

SKF P2BC107-TPZM Standard Duty Contact Seal 2-Bolt Pillow Block

Product Description

The SKF P2BC107-TPZM is a standard duty contact seal 2-bolt pillow block bearing designed for reliable operation in various applications. Its robust design ensures effective sealing and protection while supporting axial and radial loads.

• Features a contact seal to prevent contamination.
• Includes a composite housing for increased durability.
• Designed for easy installation with 2-bolt mounting options.

Product Highlights

This standard mounted unit is ideal for medium-duty applications, providing excellent protection and longevity.

Product Information

Standard Information

• Brand: SKF
• Part Number: P2BC107-TPZM

Technical Specifications

• Static Load Rating [Max]: 15.3 kN
• Bearing Type: Ball Bearing
• Relubricatable: No
• Housing Base Thickness: 0.79 in
• Sealing: Seal And Flinger On Both Sides
• Housing Material: Composite for the SKF Food Line
• Shaft Centerline: 1.87 in
• Seal Type: Contact
• Bolt Size: 0.5 in
• Housing Base Width: 1.58 in
• Housing Style: Pillow (Plummer) Block
• Through Hole Diameter: 9/16 in
• Housing Base: 6.65 in
• Lubricant In Bearing: Grease
• Shaft Dia.: 1 7/16 in
• Center Distance of Bolt Holes: 5 in
• Mounted Unit Duty: Standard
• Pillow Block Type: 2-Bolt
• Seal Material: Food Grade
