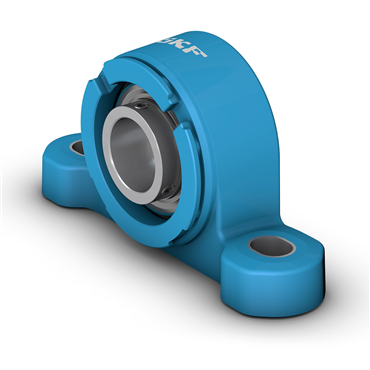

SKF P2BC100-TPSS Standard Duty Contact Seal 2-Bolt Pillow Block

Product Description

The SKF P2BC100-TPSS is a reliable standard duty contact seal 2-bolt pillow block designed for use in various applications requiring dependable performance. This unit provides effective sealing and support for rotating shafts, ensuring stability and durability.

• 1 inch shaft diameter
• Sealing on both sides with built-in flingers
• Composite housing material for versatility

Product Highlights

Ideal for standard mounted applications, this pillow block supports cylindrical bearings and is designed to operate under demanding conditions.

Product Information

Standard Information

• Brand: SKF
• Part Number: P2BC100-TPSS

Technical Specifications

• Grease Operating Max: 4300 rpm
• Housing Base Width: 1.42 inches, 36 mm
• Locking Device: Set Screws
• Expansion Type: Expansion Bearing
• Housing Style: Pillow (Plummer) Block
• Through Hole Diameter: 13/32 inches
• Sealing: Seal and flinger on both sides
• Shaft Diameter: 1 inch, 25.4 mm
• Housing Base Thickness: 0.67 inches, 17 mm
• Bolt Size: 0.38 inches, 10 mm
• Static Load Rating Max: 7.8 kN
• Bearing Type: Ball Bearing
• Seal Material: Food Grade
• Housing Material: Composite for the SKF Food Line
• Lubricant In Bearing: Grease
• Pillow Block Type: 2-Bolt
• Relubricatable: No
• Housing Base: 5.59 inches, 142 mm
• Shaft Centerline: 1.44 inches, 36.5 mm
• Seal Type: Contact
• Bore Type: Cylindrical
• Mounted Unit Duty: Standard
• Center Distance of Bolt Holes: 4.13 inches, 105 mm
• Length Through Bore: 1.34 inches, 34.1 mm
• Weight: 0.788 pounds
• EAN or UPC: 7316577858832
