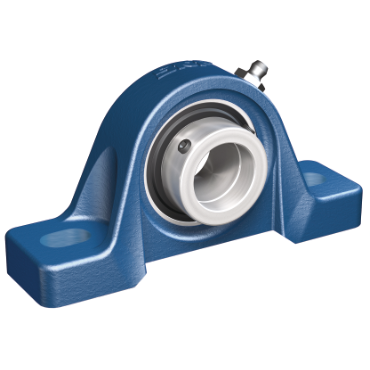

SKF P2B212-TF Standard-Duty Cast Iron Pillow Block

Product Description

The SKF P2B212-TF is a standard-duty cast iron pillow block designed for durable support in various machinery applications. This unit is built to accommodate a shaft diameter of two and three-fourths inches and features a base-to-center height that is standardized for optimal alignment.

• Ball Bearing Pillow Block
• Supports loads directed through the base
• Grease fitting included for lubrication

Product Highlights

This unit is ideal for use in standard-duty applications, incorporating a locking mechanism and a grease fitting for easy maintenance and alignment. It is manufactured from robust cast iron to ensure longevity in demanding environments.

Product Information

Standard Information

• Brand: SKF
• Part Number: P2B212-TF

Technical Specifications

• Series: P2B
• Weight: 17.637 lb
• Sealing: Seal on both sides
• Dynamic Capacity: 14900 lbf
• Bolt Size: 3/4 inch
• Housing Height: 6 5/8 inches
• Housing Material: Cast Iron
• Shaft Diameter: 2 3/4 inches
• Center Line to Base Dimension [Min]: 3 1/4 inches
• Bolt Hole Spacing: 8 3/32 inches
• Bearing Type: Ball Bearing
• Locking Device: Setscrew Locking
