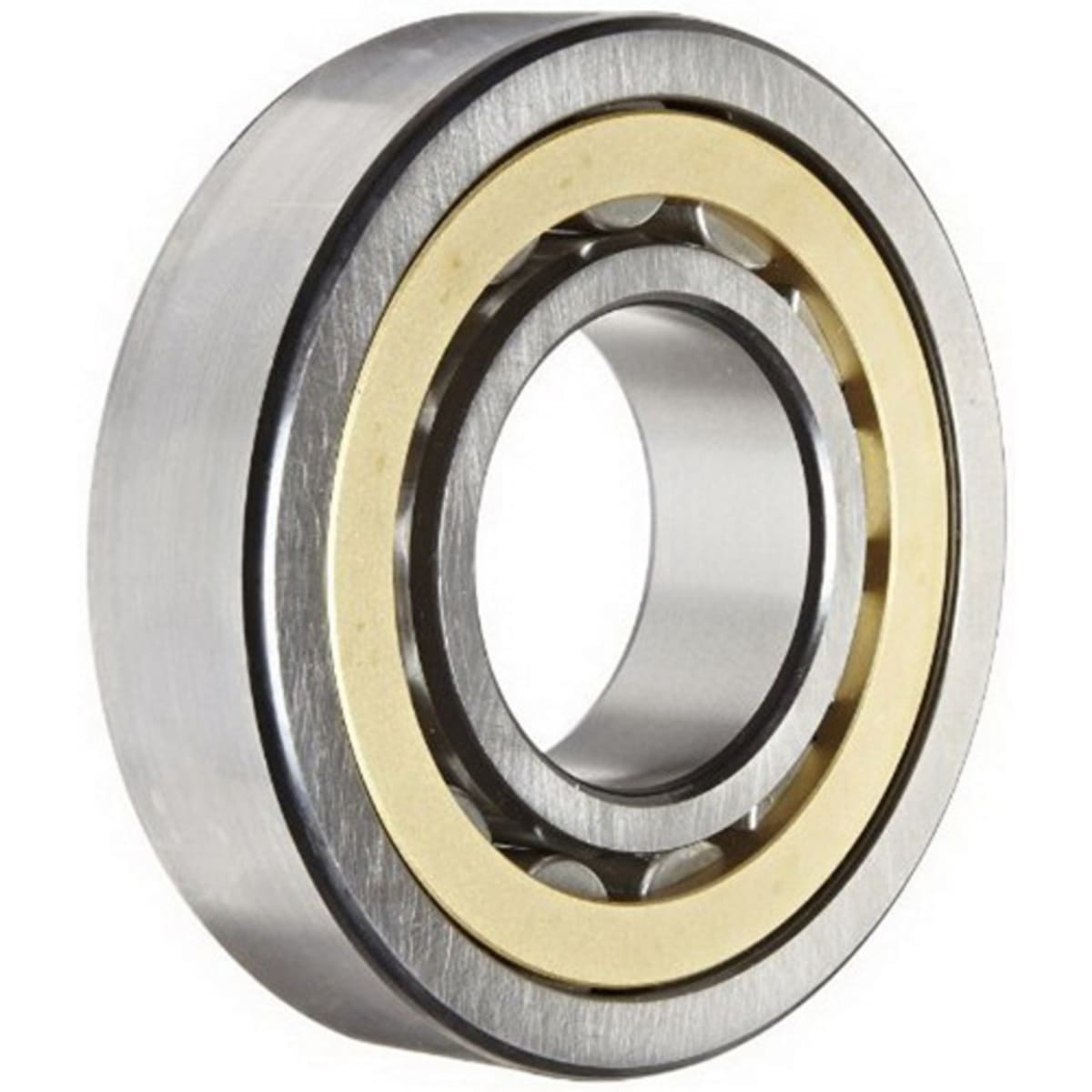

SKF NU324ECM/C3 Cylindrical Roller Bearing, 120 mm Bore x 260 mm OD x 55 mm W, Replacement MPN NU324ECM/C3

Product Description

The SKF NU324ECM/C3 is a single row cylindrical roller bearing designed for heavy radial loads. This bearing features a bore diameter of one hundred twenty millimeters and an outside diameter of two hundred sixty millimeters. It is constructed with a machined brass cage that allows for high performance at elevated speeds.

• Suitable for heavy radial loads and rapid accelerations.
• Constructed with a machined brass cage for durability.
• Designed for high-speed applications with low radial internal clearance.

Product Highlights

This cylindrical roller bearing is ideal for industrial applications requiring high load capacities. It also offers a longer service life and reduced friction for improved efficiency.

Product Information

Standard Information

• Item Name: Cylindrical Roller Bearing
• Brand: SKF BEARINGS

Technical Specifications

• MPN: NU324ECM/C3
• Bore Diameter: 120 mm
• Outside Diameter: 260 mm
• Width: 55 mm
• Weight: 14.7 kg
• Dynamic Load Capacity: 610000 N
• Static Load Capacity: 620000 N
• Cage Material: High Strength Machined Brass Rivetless With Square Holes
• Speed Rating: 3200 rpm Limiting, 2800 rpm Reference
