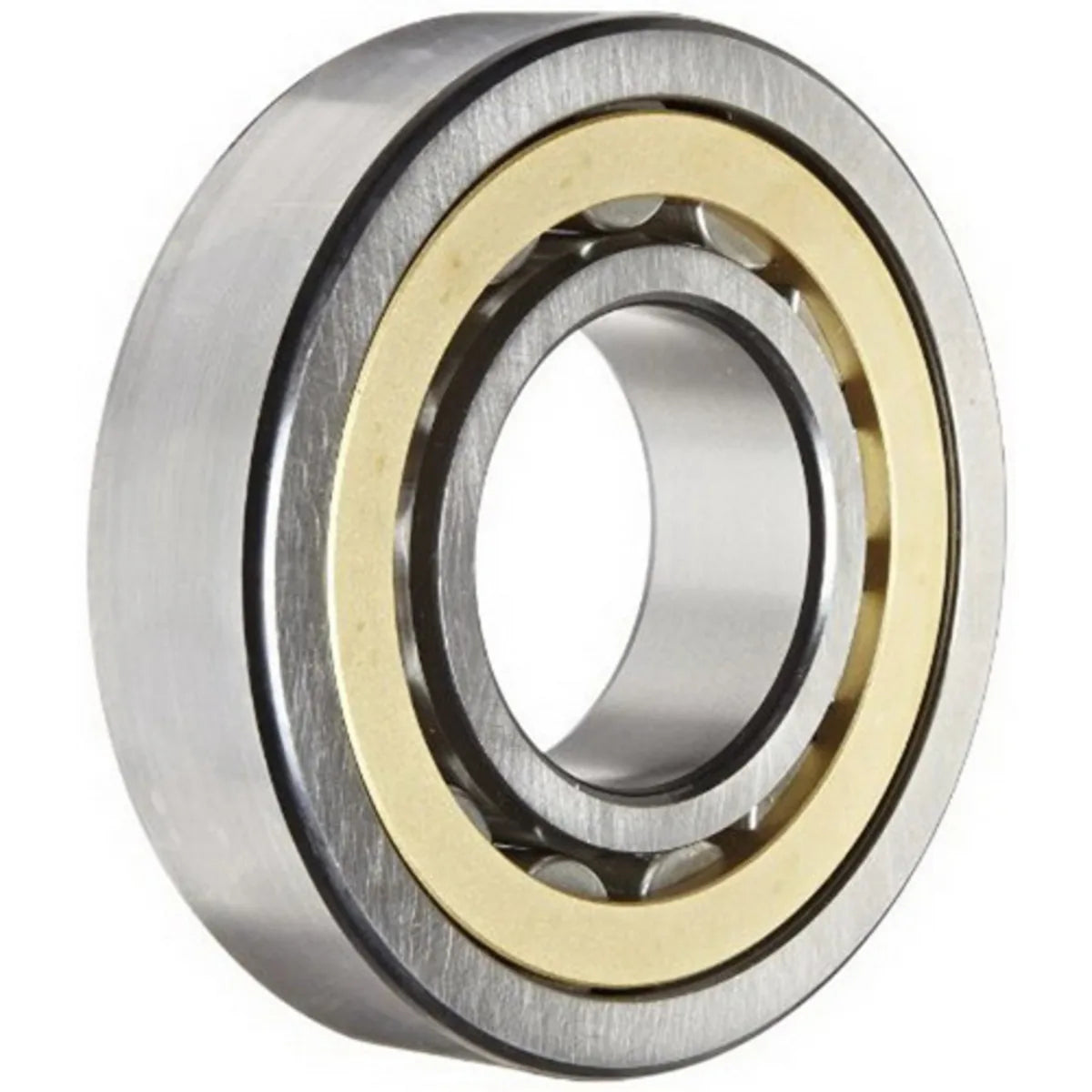

SKF NU322ECM/C3 Cylindrical Roller Bearing, 110 mm Bore x 240 mm OD x 50 mm Width

Product Description

The SKF NU322ECM/C3 is a single row cylindrical roller bearing designed for heavy loads. Its dimensions include a bore diameter of one hundred ten millimeters, an outside diameter of two hundred forty millimeters, and a width of fifty millimeters. This bearing features a machined brass cage, allowing it to operate efficiently at high speeds and support substantial radial loads.

• Single row design for durability
• High load capacity and speed capabilities
• Suitable for various industrial applications

Product Highlights

This cylindrical roller bearing features an internal clearance rating of C3 and is capable of speeds up to thirty-four hundred RPM.

Product Information

Standard Information

• Brand: SKF BEARINGS
• MPN: NU322ECM/C3

Technical Specifications

• Bore Diameter: 110 mm
• Outside Diameter: 240 mm
• Width: 50 mm
• Static Load Capacity: 540000 N
• Dynamic Load Capacity: 530000 N
• Net Weight: 11.5 kg
• Cage Material: High Strength Machined Brass Rivetless with Square Holes
• Number of Rows: 1
• Speed Rating: 3400 RPM Limiting, 3000 RPM Reference
• Internal Clearance: C3
