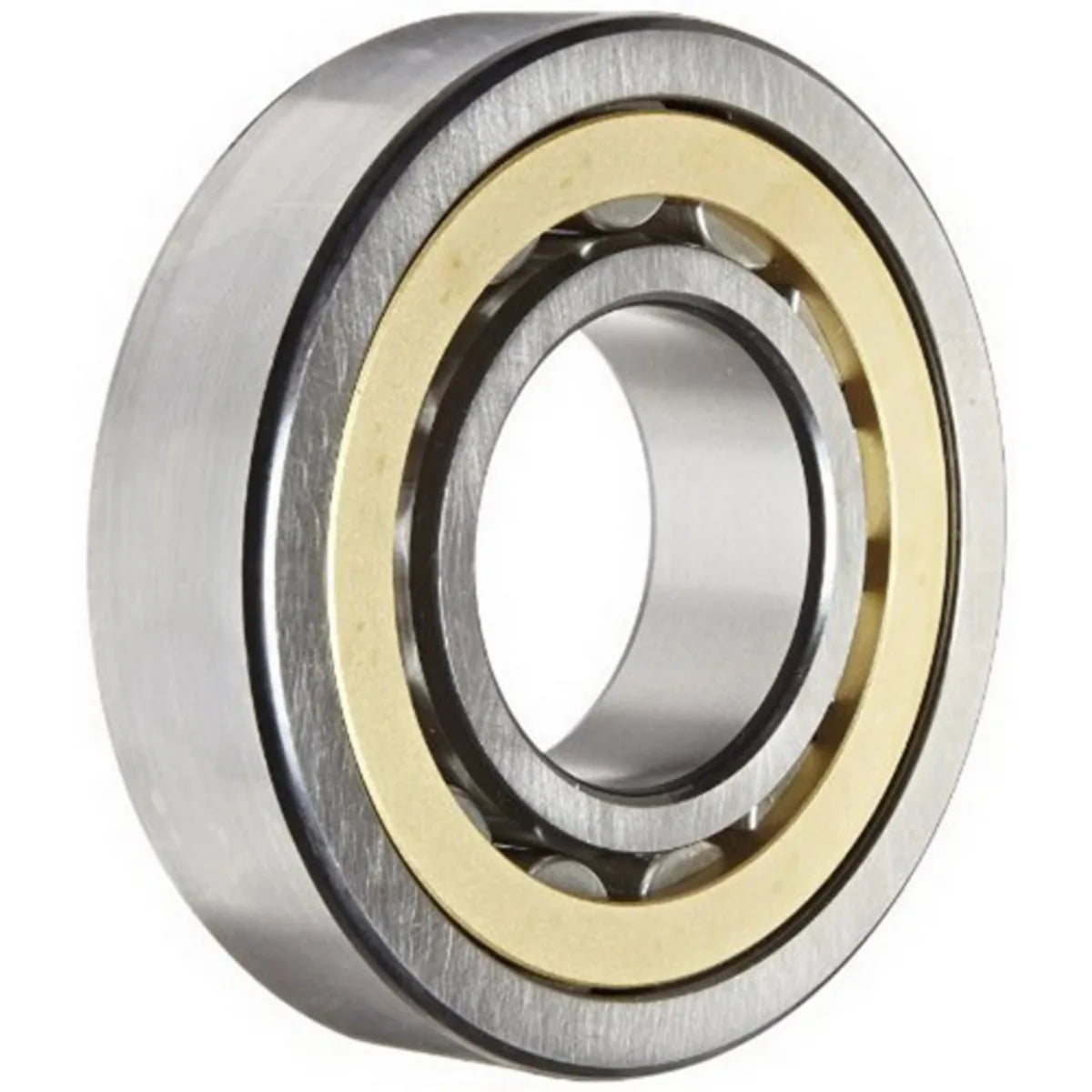

SKF NU314ECM/C3 Cylindrical Roller Bearing 70 mm Bore x 150 mm OD x 35 mm W

Product Description

The SKF NU314ECM/C3 is a single row cylindrical roller bearing designed for high load capacity and high speed. This bearing features a bore diameter of seventy millimeters, an outer diameter of one hundred fifty millimeters, and a width of thirty-five millimeters. The design is suitable for various applications that require reliable performance under heavy radial loads.

• Single row bearing with high load carrying capacity
• Designed for high speeds and reduced friction
• Manufactured with a machined brass cage

Product Highlights

This bearing provides stability and durability in demanding environments. Its C3 internal clearance allows for better performance in applications experiencing high temperatures and speeds.

Product Information

Standard Information

• Brand: SKF Bearings
• Part Number: NU314ECM/C3

Technical Specifications

• Bore Diameter: 70 mm
• Outside Diameter: 150 mm
• Width: 35 mm
• Cage Material: High Strength Machined Brass
• Weight: 3.17 kg (approximately 7 lbs)
• Dynamic Load Capacity: 236000 N
• Static Load Capacity: 228000 N
• Speed Rating: 5600 rpm Limiting, 4800 rpm Reference
