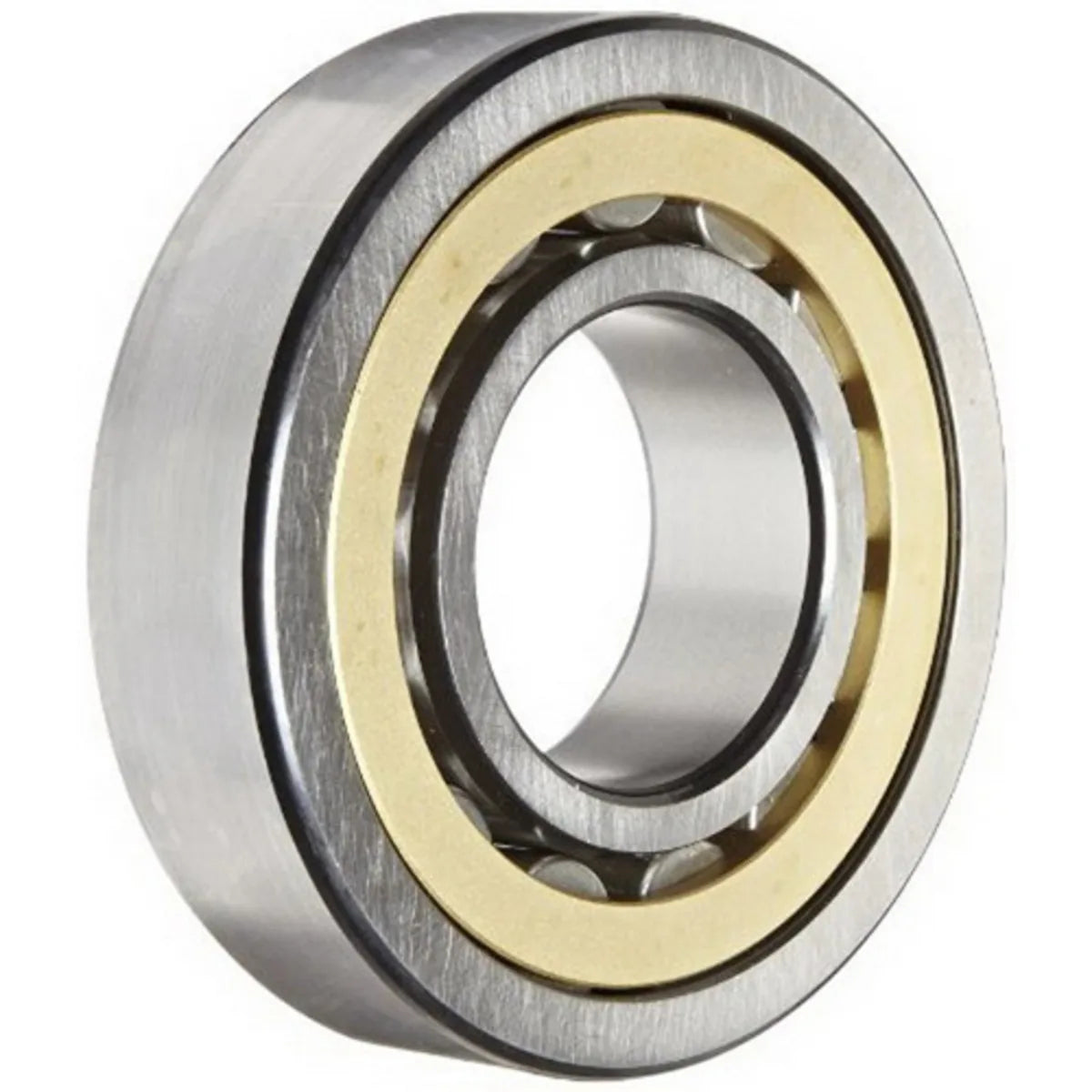

SKF NU310ECM/C3 Cylindrical Roller Bearing 50 mm ID 110 mm OD 27 mm W

Product Description

The SKF NU310ECM/C3 is a single row cylindrical roller bearing. It features a bore diameter of fifty millimeters, an outer diameter of one hundred ten millimeters, and a width of twenty-seven millimeters. This bearing is designed to accommodate heavy radial loads and is suitable for applications with rapid accelerations and high speeds.

• High load carrying capacity
• Suitable for high-speed applications
• C3 internal clearance for optimal performance

Product Highlights

This bearing combines the strength of a full complement design with the speed capability of a cage design, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: SKF Bearings
• Part Number: NU310ECM/C3

Technical Specifications

• Bore Diameter: 50 mm
• Outside Diameter: 110 mm
• Width: 27 mm
• Static Load Capacity: 112000 N
• Dynamic Load Capacity: 127000 N
• Number of Rows: 1
• Cage Material: High Strength Machined Brass
• Speed Rating: 8000 rpm Limiting
