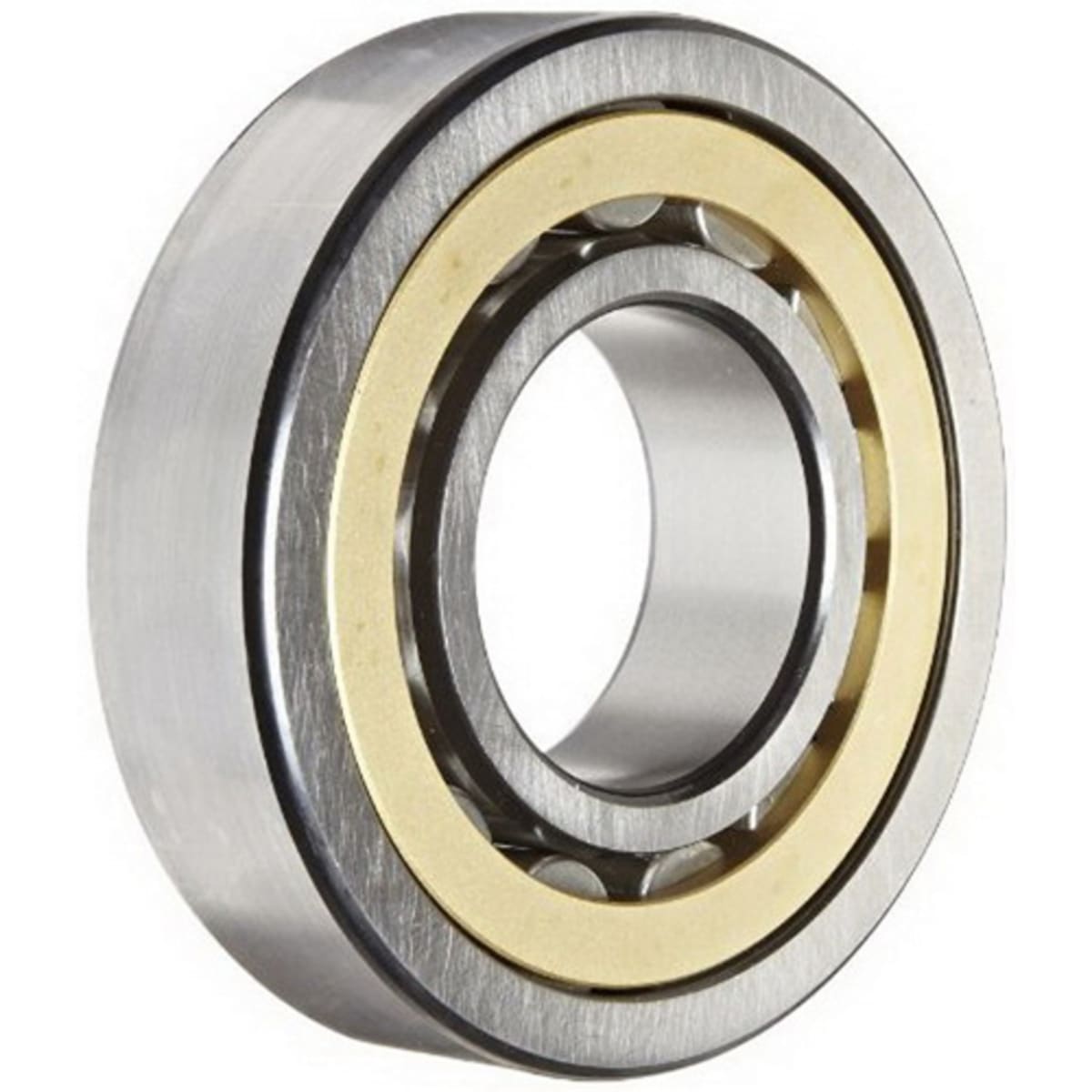

SKF NU309ECM/C3 Cylindrical Roller Bearing 45 mm x 100 mm x 25 mm

Product Description

SKF NU3 Series Cylindrical Roller Bearing NU309ECM/C3 features a bore diameter of forty-five millimeters and an outer diameter of one hundred millimeters. This single-row bearing is designed with a machined brass cage. It can handle heavy radial loads and operates efficiently in high-speed environments.

• High load carrying capacity for demanding applications
• Compatible with rapid accelerations
• Ideal for industrial use with a maximum speed rating of eight thousand five hundred rpm

Product Highlights

This bearing combines a high capacity design with a cage to ensure optimal performance in various industrial settings.

Product Information

Standard Information

• Category: Bearings > Roller Bearings > Cylindrical Roller Bearings
• Brand: SKF BEARINGS

Technical Specifications

• Bore Diameter: 45 mm
• Outer Diameter: 100 mm
• Width: 25 mm
• Cage Material: Machined Brass
• Dynamic Load Capacity: 112000 N
• Static Load Capacity: 100000 N
• Speed Rating: 8500 rpm Limiting
• Internal Clearance: C3
