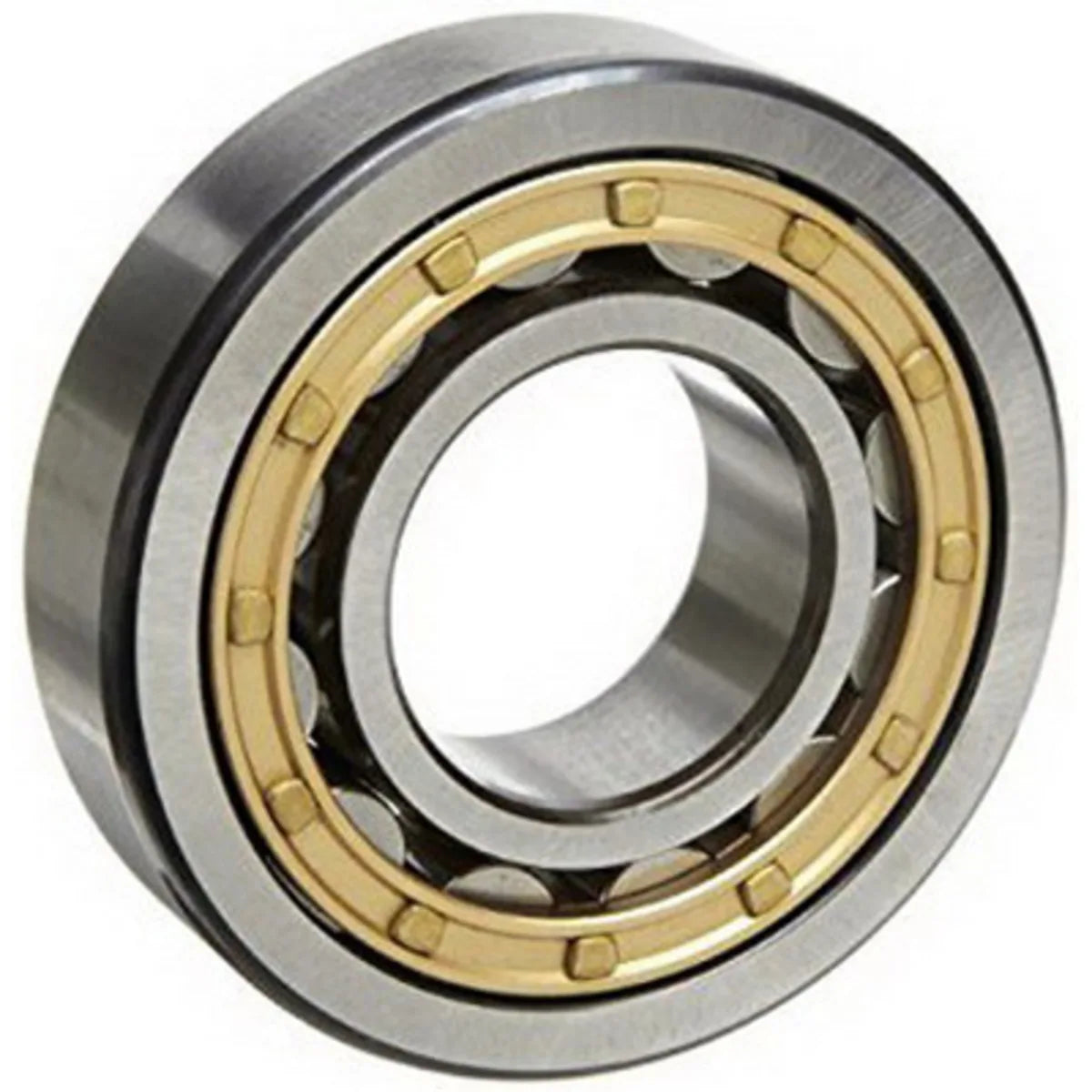

SKF NU308ECM/C3 Cylindrical Roller Bearing 40 mm ID 90 mm OD 23 mm Width

Product Description

The SKF NU308ECM/C3 is a cylindrical roller bearing designed for heavy radial loads, featuring a bore diameter of forty millimeters and an outside diameter of ninety millimeters. This single-row bearing uses a machined brass cage, allowing it to manage rapid accelerations and high speeds effectively.

• High load capacity suitable for industrial applications
• Compatible with heavy radial loads and higher speed operations
• Robust machined brass cage for optimal performance

Product Highlights

This bearing represents a blend of high load capacity and speed capability, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: SKF BEARINGS
• MPN: NU308ECM/C3

Technical Specifications

• Bore Diameter: 40 mm
• Outside Diameter: 90 mm
• Width: 23 mm
• Cage Material: Machined Brass
• Static Load Capacity: 78000 N
• Dynamic Load Capacity: 93000 N
• Radial Internal Clearance: 3 mm
• Speed Rating: 9500 rpm Limiting
