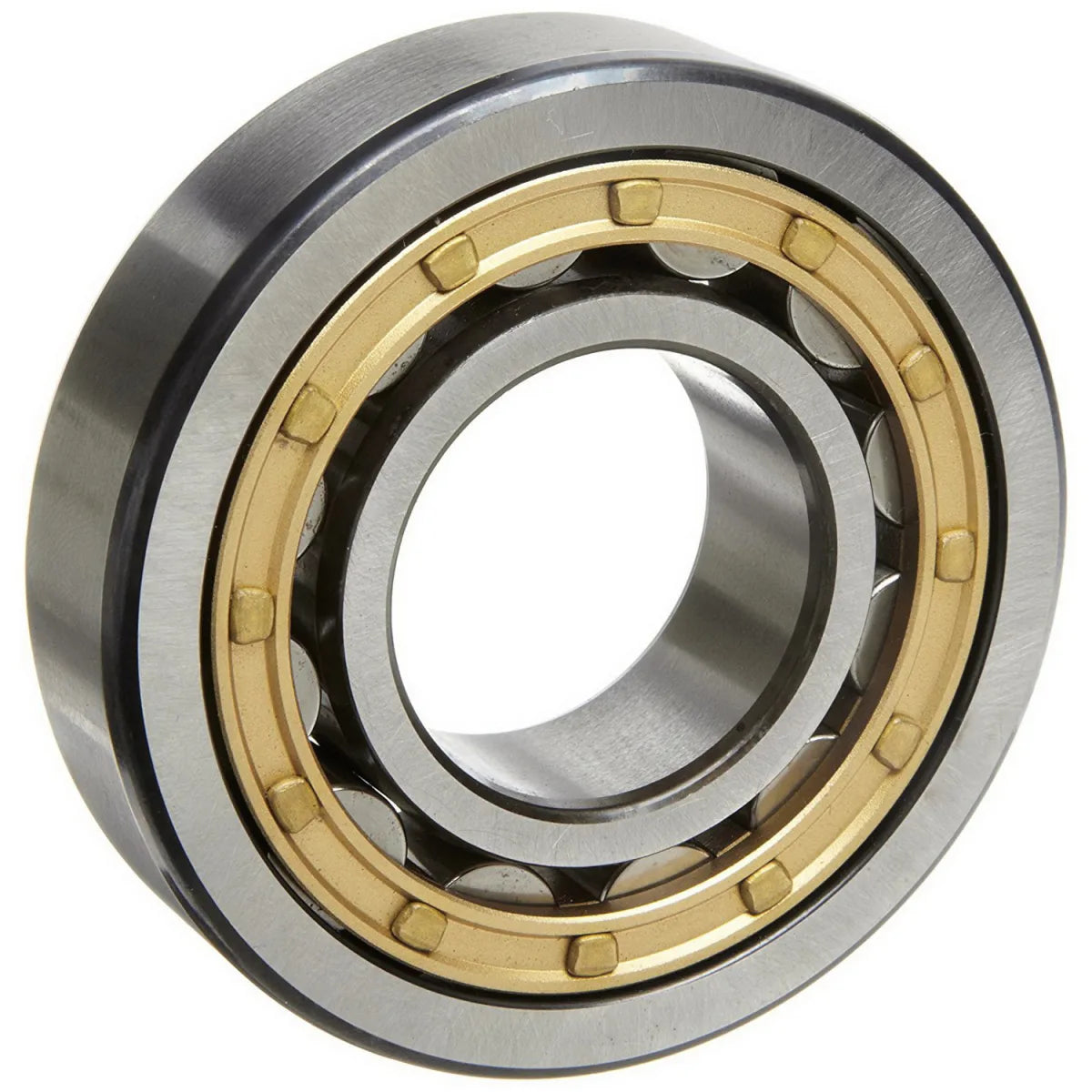

SKF NU222ECM/C3 Cylindrical Roller Bearing, 110 mm ID, 200 mm OD, 38 mm Width

Product Description

SKF NU222ECM/C3 is a cylindrical roller bearing with a bore diameter of one hundred ten millimeters and an outside diameter of two hundred millimeters. It features a machined brass cage for durability and optimal performance. This bearing is suitable for applications requiring high load capacity while maintaining efficiency, especially under rapid accelerations and high speeds.

• Robust design that accommodates heavy radial loads.
• High-speed capability with reduced friction.
• Single row configuration enhances stability and efficiency.

Product Highlights

The SKF NU222ECM/C3 cylindrical roller bearing is ideal for various industrial applications, ensuring reliable operation even under demanding conditions.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part Number: NU222ECM/C3

Technical Specifications

• Bore Diameter: 110 mm
• Outside Diameter: 200 mm
• Width: 38 mm
• Dynamic Load Capacity: 335000 N
• Static Load Capacity: 365000 N
• Internal Clearance: C3
• Speed Rating: 4000 rpm Limiting, 3600 rpm Reference
• Number of Rows: 1
• Cage Material: Machined Brass
