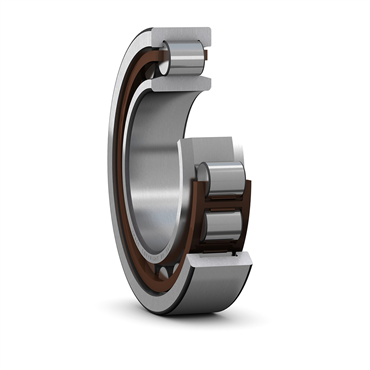

SKF NU208ECP/C3 Cylindrical Roller Bearings Single Row 40 mm ID 80 mm OD C3 Internal Clearance

Product Description

The SKF NU208ECP/C3 is a cylindrical roller bearing designed for various applications. It features a bore diameter of forty millimeters and an outside diameter of eighty millimeters. This bearing has a single row design with a width of eighteen millimeters and C3 internal clearance. It is suitable for use in areas with operating temperatures up to three hundred degrees Fahrenheit.

• Single row cylindrical roller bearing
• Open closure type
• Maximum speed of eleven thousand rpm

Product Highlights

This product is ideal for applications requiring high speed and low friction. The non-metallic cage type enhances efficiency and durability.

Product Information

Standard Information

• Brand: SKF
• Part Number: 00125753

Technical Specifications

• Bore Diameter: 40 mm
• Outside Diameter: 80 mm
• Overall Width: 18 mm
• Internal Clearance: C3
• Max RPM: 11000 rpm
• Material Element: Bearing steel
• Operating Temperature Range: Maximum of +300 °F
• Cage Type: Non-metallic
