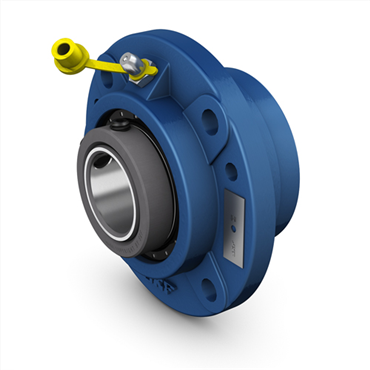

SKF F4BRPE200-TRB-STH Four-Bolt Piloted Flange Roller Bearing Unit - 2 in Bore

Product Description

The SKF F4BRPE200-TRB-STH is a four-bolt piloted flange roller bearing unit with a two-inch bore. This unit features a tapered roller design and is suitable for standard duty applications. It is built with a cast iron housing and allows for easy installation thanks to its four-bolt flange mount. The set screw locking mechanism ensures a secure fit, making it ideal for various industrial applications.

• Mounted tapered roller bearing for efficient load distribution
• Sealed design for better protection against contaminants
• Suitable for fixed installation with a robust cast iron structure

Product Highlights

This bearing unit provides reliable performance for heavy-duty applications, effectively handling radial loads.

Product Information

Standard Information

• Brand: SKF
• Country of Origin: Not specified

Technical Specifications

• Duty Type: Standard duty
• Lock Type: Double set screw
• Bore Diameter: 2 inches
• Pilot Diameter: 4.5000 inches
• Length Through Bore: 3.5 inches
• Bolt Circle Diameter: 5.3750 inches
• Radial Static Load Capacity: 36500 lbf
• Radial Dynamic Load Capacity: 9650 lbf
• Relubricatable: Yes, with grease fitting
• Number Of Mounting Holes: 4
