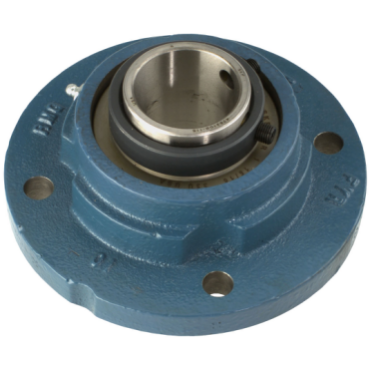

SKF F4BR307-SRB-SRE | FYR Series Heavy-Duty Cast Iron 4-Bolt Spherical Bearing Flange Unit

Product Description

The SKF F4BR307-SRB-SRE is a heavy-duty cast iron four-bolt spherical bearing flange unit designed for reliable support and alignment in various applications. This unit features a spherical roller bearing, which allows for self-alignment and reduces stresses on the shaft. The construction includes a cast iron housing and setscrew locking for secure mounting.

• Heavy-duty construction
• Self-aligning spherical roller bearing
• Easy lubrication and maintenance

Product Highlights

This flange unit is ideal for applications requiring robust support and stability. Its design allows for quick installation and maintenance, making it suitable for a range of industrial uses.

Product Information

Standard Information

• Brand: SKF
• MPN: F4BR307-SRB-SRE

Technical Specifications

• Style: 4-Bolt Flange
• Flange Thickness: 1.125 inches
• Dynamic Load Rating: 56900 lbf
• Overall Width: 4.29 inches
• Bolt Hole Spacing: 6.718 inches
• Mounted Unit Duty: Heavy-Duty
• Locking Device: Setscrew Locking Collar
• RPM [Max]: 1300 rpm
• Housing Width: 3.06 inches
• Bearing Type: Spherical Roller Bearing
• Bearing Design: Expansion
• End Type: Open End
• Length Through Bore: 4.03125 inches
• Shaft Diameter: 3.4375 inches
• Housing Material: Cast Iron
• Weight: 37.92 lb
• EAN or UPC: 7316579138338
