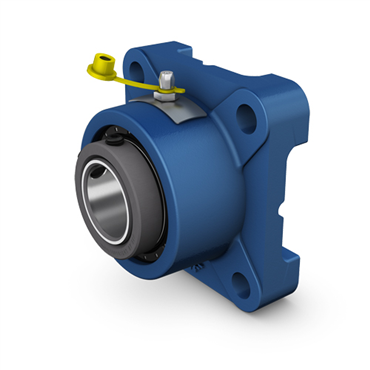

SKF F4BE 108-TRB-STH Standard Duty 4-Bolt Flange Unit

Product Description

The SKF F4BE 108-TRB-STH is a standard duty 4-bolt flange unit designed for robust applications. This unit features a bore diameter of one and a half inches and is ideal for various mounting setups.

• 4-bolt flange design for secure mounting
• Cylindrical bore type for smooth operation
• Built with high-quality materials for durability

Product Highlights

This flange unit offers reliable performance in demanding environments. It includes a relubricatable feature and a dynamic load rating of seven thousand five hundred pounds.

Product Information

Standard Information

• Brand: SKF
• Part Number: F4BE 108-TRB-STH

Technical Specifications

• Flange Type: 4-Bolt Flange
• Bolt Hole Size: 9/16 inches
• Lubrication: Grease
• Bore Type: Cylindrical
• Shaft Diameter: 1 1/2 inches
• Relubricatable: Yes
• Bolt Size: 1/2 inches
• Seal Material: Hydrogenated Nitrile Rubber (HNBR)
• Bolt Holes: 4
• Seal Type: Contact
• Length Through Bore: 3 3/8 inches
• Dynamic Load Rating: 7500 lbf
• Static Load Rating: 28500 lbf
• Housing Length: 5 3/8 inches
• Bearing Type: Tapered Roller Bearing
• Locking Device: Double Set Screw
• Housing Material: Cast Iron
• Housing Height: 2 31/32 inches
• Weight: 9.129 lb
