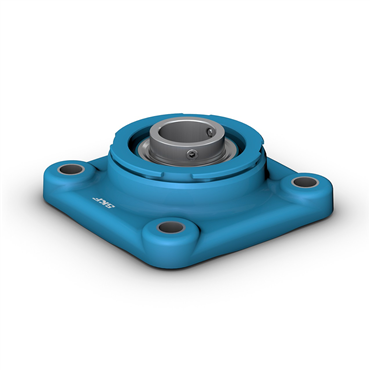

SKF F4BC107-TPSS Standard Duty Contact Seal 4-Bolt Flange Bracket

Product Description

The SKF F4BC107-TPSS is a standard duty contact seal designed for a four-bolt flange bracket. This product is suitable for applications requiring reliable sealing and durability. It features a composite material suitable for the SKF food line, ensuring compliance with hygiene standards.

• Flanged housing for secure installation.
• Contact seal for effective protection against contaminants.
• Compatible with a variety of shafts up to one and seven-sixteenths inches in diameter.

Product Highlights

The SKF F4BC107-TPSS ensures longevity and reliability in various operating conditions.

Product Information

Standard Information

• Brand: SKF
• Part Number: F4BC107-TPSS

Technical Specifications

• Flanged Housing Type: Square
• Seal Type: Contact
• Housing Base Thickness: 0.67 inches, 17 mm
• Relubricatable: No
• Grease Operating [Max]: 3200 rpm
• Locking Device: Set Screws
• Sealing: Seal And Flinger On Both Sides
• Bore Type: Cylindrical
• Lubricant In Bearing: Grease
• Flange Type: 4-Bolt
• Bearing Type: Ball Bearing
• Inch/Metric: Inch
• Shaft Diameter: 1 7/16 inches, 36.51 mm
• Center Distance of Bolt Holes: 3.62 inches, 92 mm
• Through Hole Diameter: 9/16 inches
• Static Load Rating [Max]: 15.3 kN
• Housing Material: Composite for the SKF Food Line
• Mounted Duty Type: Standard
• Bolt Size: 0.5 inches, 12 mm
• Length Through Bore: 1.69 inches, 42.9 mm
• Housing Style: Flanged
• EAN or UPC: 7316577857057
