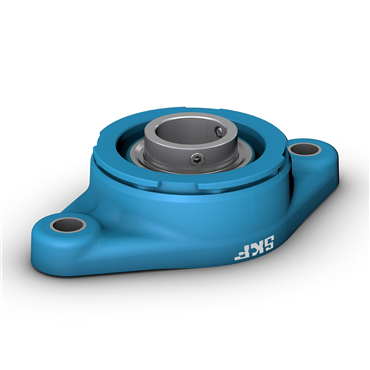

SKF F2BC 25M-TPZM Standard Duty Contact Seal 2-Bolt Flange Bracket

Product Description

The SKF F2BC 25M-TPZM is a standard duty contact seal 2-bolt flange bracket designed for durability and efficient operation. This product is suitable for various applications in the food industry due to its composite housing material.

• Compatible with a shaft diameter of zero point nine eight inches.
• Includes sealing and flinger on both sides for enhanced protection.
• Static load rating up to seven point eight kilonewtons.

Product Highlights

This flange bracket serves as a reliable component in mounted bearing applications.

Product Information

Standard Information

• MPN: F2BC25M-TPZM
• Brand: SKF

Technical Specifications

• Shaft Diameter: 0.98 in, 25 mm
• Housing Material: Composite for the SKF Food Line
• Seal Type: Contact
• Flange Type: 2-Bolt
• Weight: 0.707 LB
• Bolt Size: 0.39 in, 10 mm
• Through Hole Diameter: 11 mm
• Center Distance of Bolt Holes: 3.9 in, 99 mm
