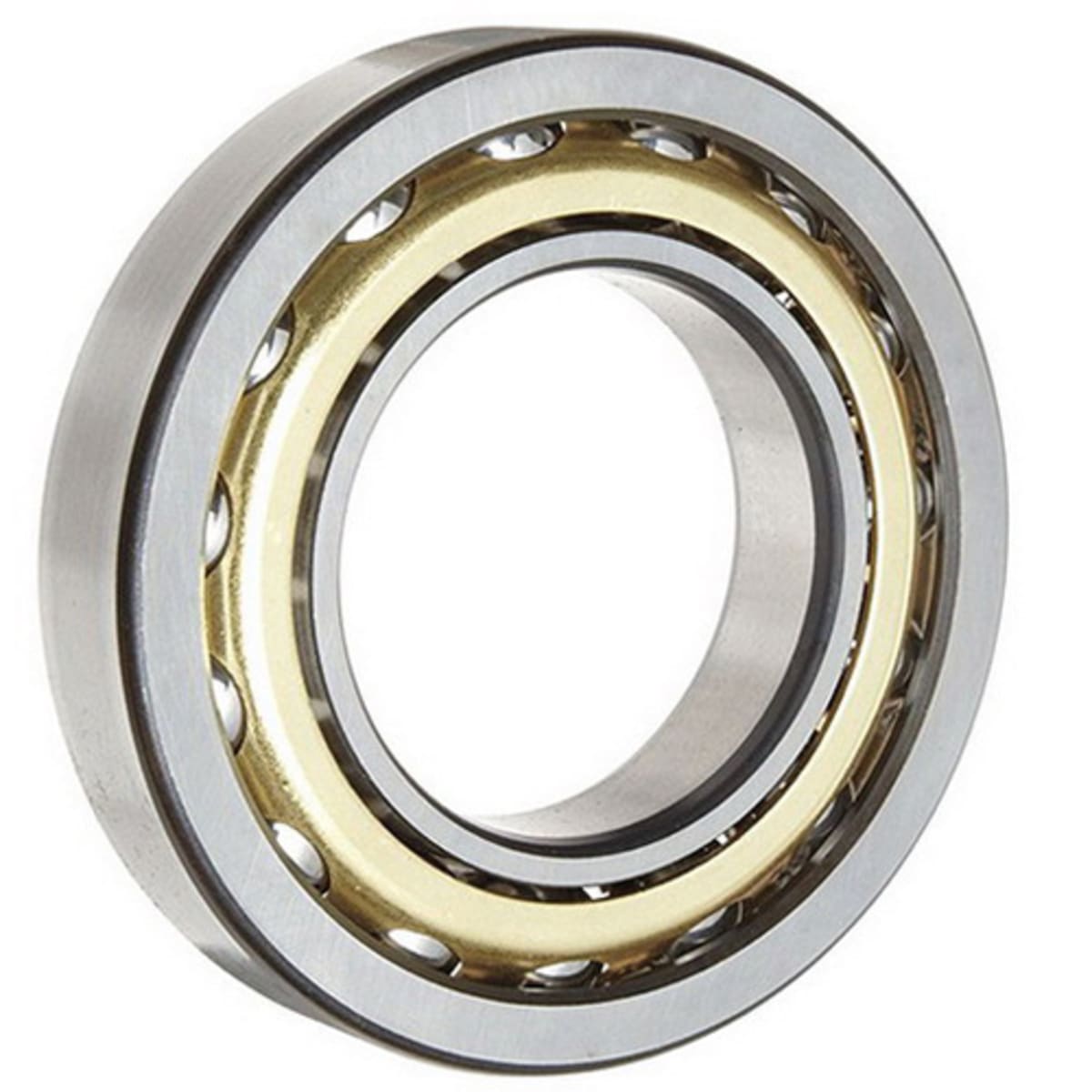

SKF 7224BCBM Single Row Angular Contact Ball Bearing, 40 deg, 120 mm Bore x 215 mm OD x 40 mm W, Machined Brass

Product Description

SKF 7224BCBM is a single row angular contact ball bearing that is designed for axial loads in one direction. This bearing type is non-separable and consists of one high and one low shoulder, facilitating the inclusion of more balls. The design enhances load capacity significantly.

• Can handle high axial loads in one direction.
• Features a robust brass cage for durability.
• Suitable for applications requiring high speed and precision.

Product Highlights

Ideal for high-performance applications, the SKF 7224BCBM is engineered for optimal efficiency and longevity.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part Number: 7224BCBM04

Technical Specifications

• Bore Diameter: 120 mm
• Outside Diameter: 215 mm
• Width: 40 mm
• Contact Angle: 40 degrees
• Cage Material: Machined Brass
• Dynamic Load Capacity: 37093.4 lbf
• Static Load Capacity: 36643.8 lbf
• Speed Rating: 3600 rpm (Grease), 3400 rpm (Oil)
