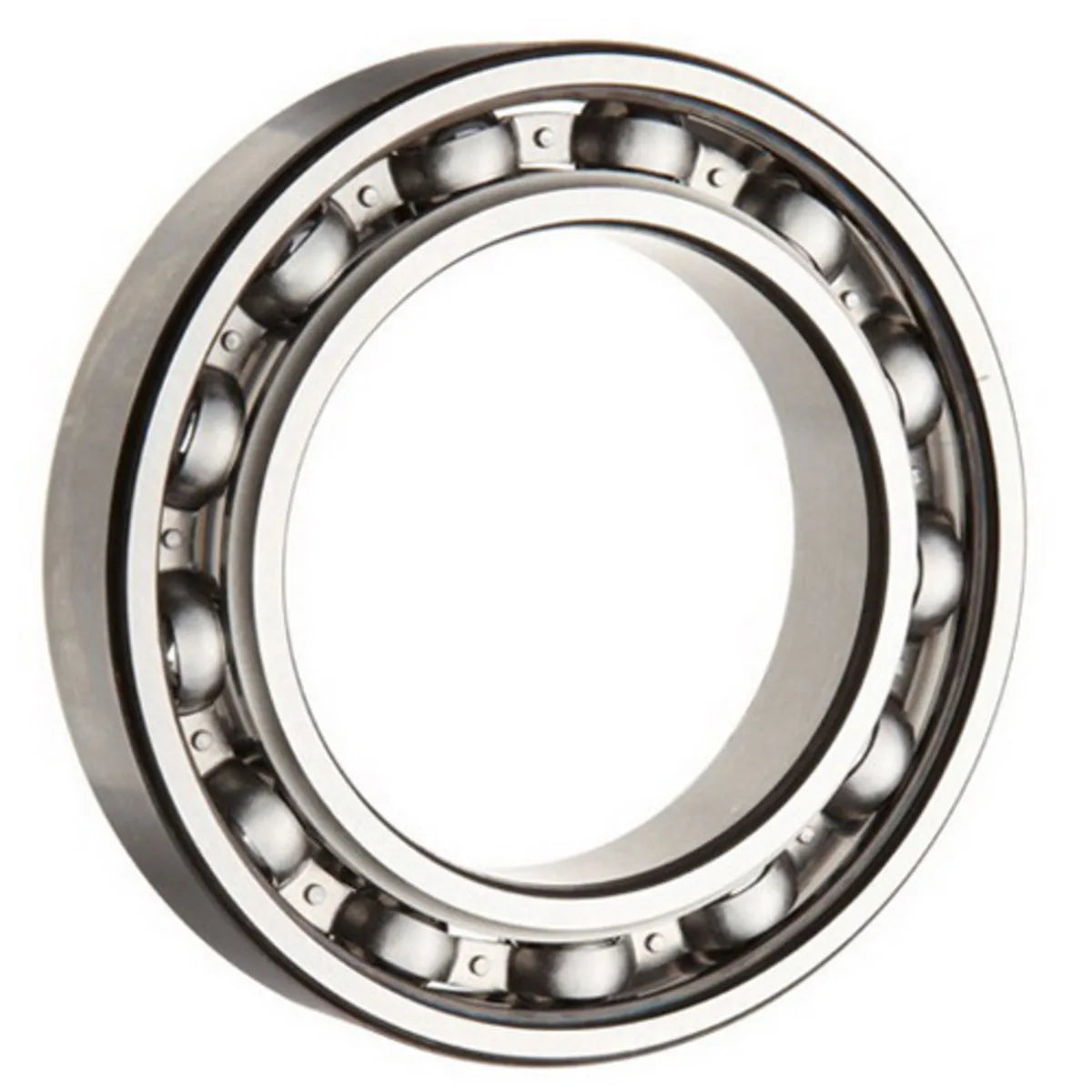

SKF 6324/C3 Deep Groove Radial Ball Bearing 120 mm ID 260 mm OD 55 mm Width

Product Description

The SKF 6324 single row deep groove radial ball bearing features a bore diameter of one hundred twenty millimeters and an outside diameter of two hundred sixty millimeters. With a width of fifty-five millimeters, this bearing is designed to accommodate both radial and axial loads in either direction. The close osculation of the raceway grooves with the balls optimizes performance under various conditions.

• Operates efficiently at high speeds up to three thousand four hundred revolutions per minute.
• Made with a pressed steel cage to enhance durability.
• Available in an open style, allowing for better lubrication access.

Product Highlights

This bearing is suitable for a range of applications, including fans, pumps, and agricultural machinery. It features low operational costs and maintenance requirements.

Product Information

Standard Information

• Brand: SKF Bearings
• Part Number: 632404

Technical Specifications

• Bore Diameter: 120 mm
• Outside Diameter: 260 mm
• Width: 55 mm
• Static Load Capacity: 186000 N
• Dynamic Load Capacity: 208000 N
• Clearance: C3
• Speed Rating: 3400 rpm Limiting, 5600 rpm Reference
• Temperature Rating: -40 to 100 °C
