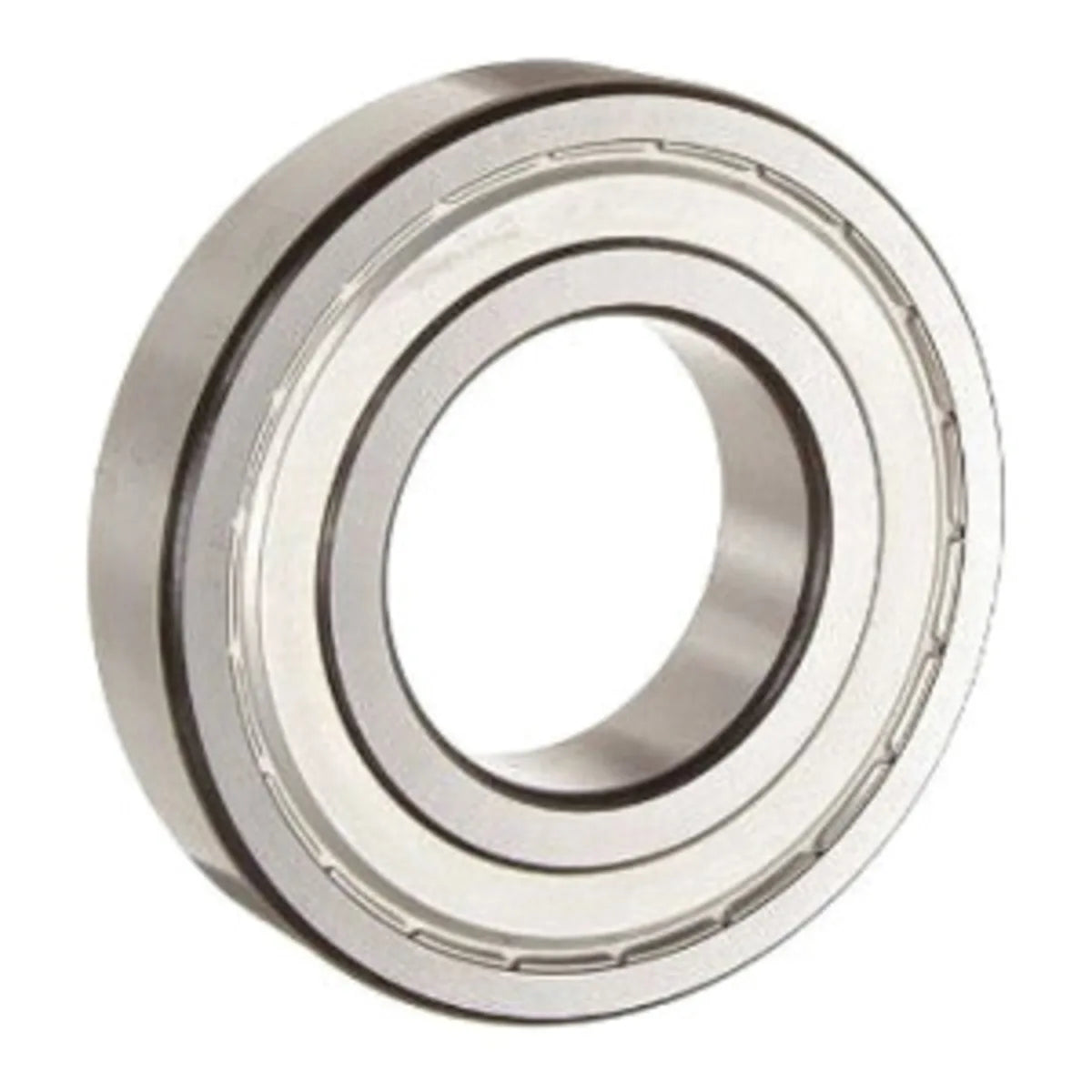

SKF 6320-2Z Single Row Deep Groove Radial Ball Bearing 100 mm Bore x 215 mm OD x 47 mm W

Product Description

SKF 6320-2Z is a single row deep groove radial ball bearing with a bore diameter of one hundred millimeters and an outer diameter of two hundred fifteen millimeters. This bearing features a double shield design, offering protection against contaminants. It is suitable for various applications including fans, pumps, and agricultural machinery.

• Single row design allows for efficient radial and axial load handling.
• Double shielded to enhance durability and reduce maintenance.
• Constructed with a pressed steel cage for improved structural integrity.

Product Highlights

Designed for versatility, the SKF 6320-2Z can accommodate both radial and axial loads and operates effectively in various environments.

Product Information

Standard Information

• Brand: SKF Bearings
• MPN: 63202ZJEM

Technical Specifications

• Bore Diameter: 100 mm
• Outside Diameter: 215 mm
• Width: 47 mm
• Cage Material: Pressed Steel
• Number of Rows: 1
• Dynamic Load Capacity: 174000 N
• Static Load Capacity: 140000 N
• Temperature Rating: -40 to 100 °C
