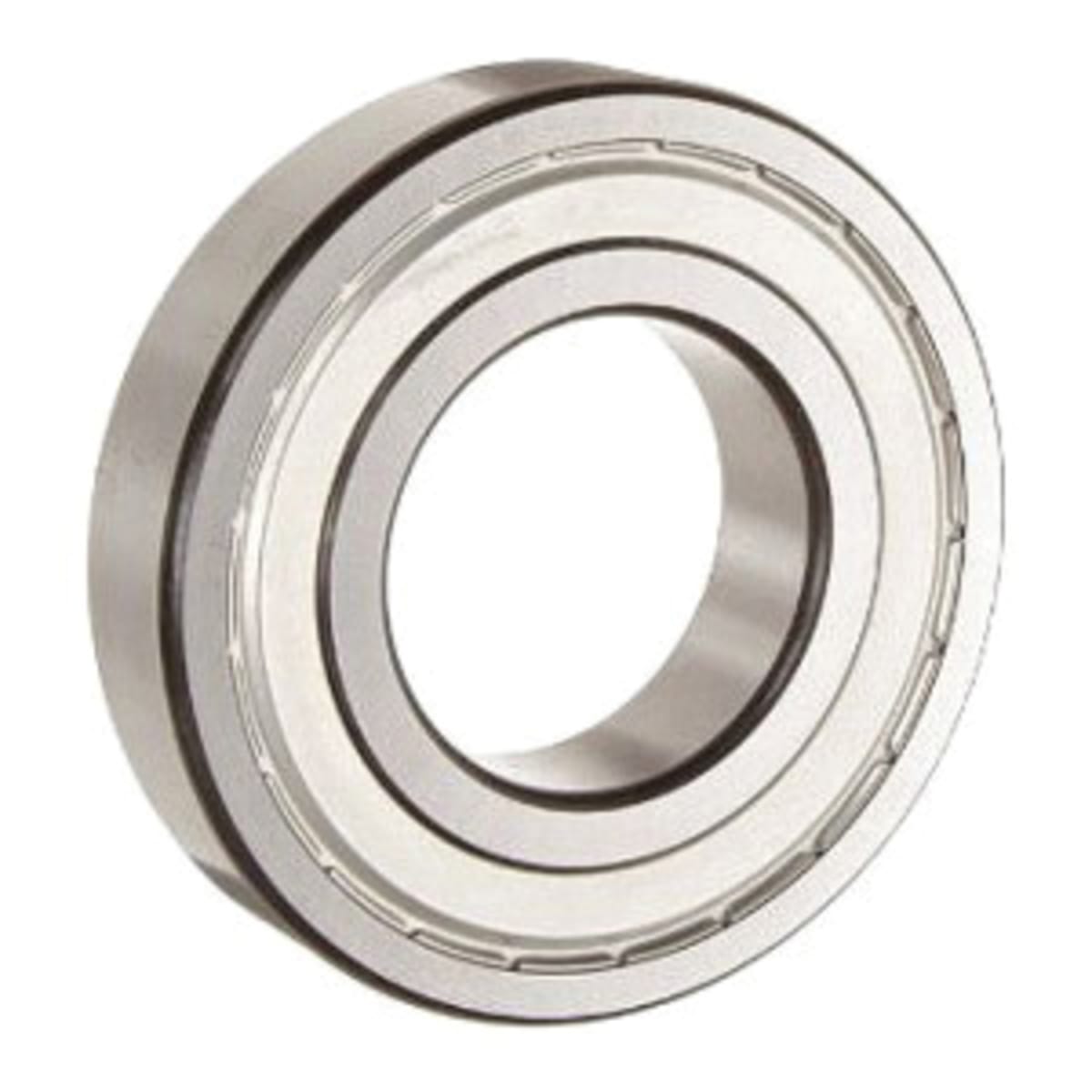

SKF 6319-2Z Single Row Deep Groove Radial Ball Bearing, 95 mm Bore x 200 mm OD x 45 mm W, Double Shield, Pressed Steel Cage

Product Description

SKF 6319-2Z is a single row deep groove radial ball bearing with a bore of ninety-five millimeters, an outside diameter of two hundred millimeters, and a width of forty-five millimeters. This bearing features a double shield design for enhanced protection, making it suitable for a variety of applications. The close osculation between the raceway grooves and the balls allows for effective accommodation of both radial and axial loads in any direction.

• Deep groove design for efficient load handling
• Double shielded to protect against contamination
• Steel cage for improved durability

Product Highlights

This bearing is ideal for use in high-speed applications such as fans, pumps, and agricultural machinery.

Product Information

Standard Information

• Brand: SKF Bearings
• Part Number: 6319ZZ04

Technical Specifications

• Bore Diameter: 95 mm
• Outside Diameter: 200 mm
• Width: 45 mm
• Dynamic Load Capacity: 159000 N
• Static Load Capacity: 118000 N
• Cage Material: Pressed Steel
• Enclosure Type: Double Shield
• Speed Rating: 3600 rpm Limiting, 7000 rpm Reference
• Temperature Rating: -40 to 100 °C
• Clearance: C3
