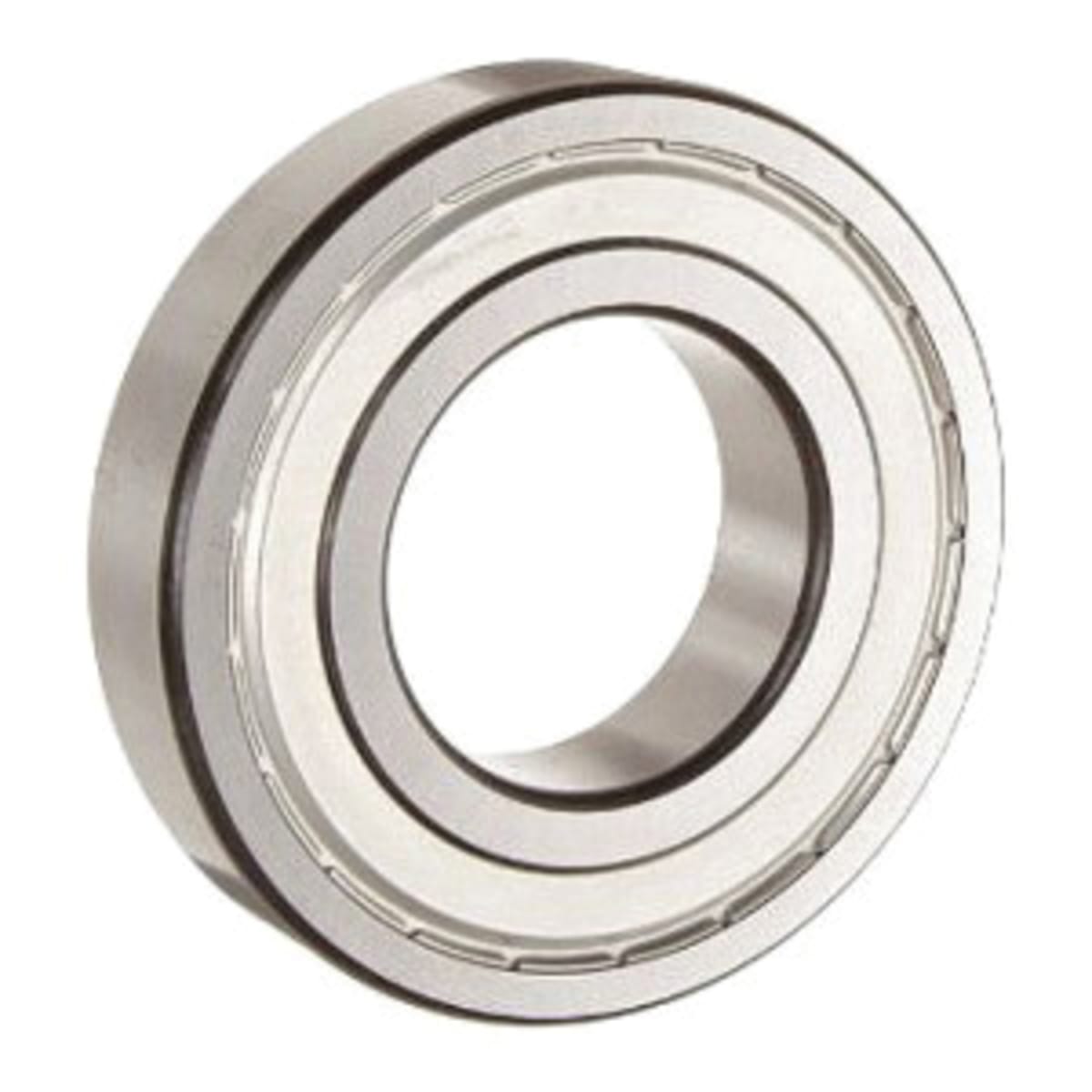

SKF 6318-2Z Single Row Deep Groove Radial Ball Bearing, 90 mm Bore x 190 mm OD x 43 mm W, Double Shield, Pressed Steel Cage

Product Description

The SKF 6318-2Z is a single row deep groove radial ball bearing with a bore diameter of ninety millimeters and an outer diameter of one hundred ninety millimeters. It features a width of forty-three millimeters and has a double shield design for enhanced protection.

• Accommodates both radial and axial loads.
• Constructed with pressed steel cage.
• Temperature rating from negative forty to one hundred degrees Celsius.

Product Highlights

This bearing is suitable for various applications, such as fans and pumps, where reliable performance is critical.

Product Information

Standard Information

• Brand: SKF Bearings
• Part Number: 6318ZZ04

Technical Specifications

• Bore Diameter: 90 mm
• Outer Diameter: 190 mm
• Width: 43 mm
• Dynamic Load Capacity: 151000 N
• Static Load Capacity: 108000 N
• Speed Rating: 3800 rpm Limiting, 7500 rpm Reference
• Enclosure Type: Double Shield
• Cage Material: Pressed Steel
