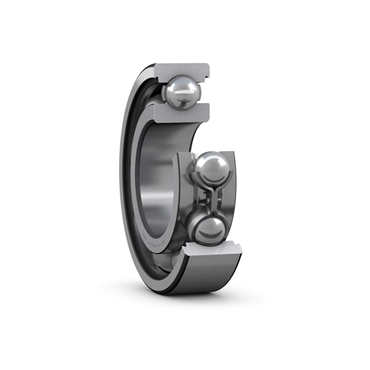

SKF 6316/C3 Single Row Cylindrical Bore Deep Groove Ball Bearing

Product Description

The SKF 6316/C3 is a single row cylindrical bore deep groove ball bearing designed for high load capacity and durability. With a bore diameter of three point fifteen inches and an outer diameter of six point sixty-nine inches, this bearing is suitable for various industrial applications.

• Open design allows for easy lubrication.
• Manufactured from high-quality bearing steel for longevity.
• Designed with C3 internal clearance to accommodate thermal expansion.

Product Highlights

This bearing supports radial loads in both directions and can handle moderate axial loads, making it versatile for different machinery.

Product Information

Standard Information

• Brand: SKF
• Product Type: Radial & Deep Groove Ball Bearings

Technical Specifications

• Inner Diameter: 3.15 inches (80 mm)
• Outer Diameter: 6.69 inches (170 mm)
• Width: 1.54 inches (39 mm)
• Material: Bearing steel
• Series: 63
• Bore Type: Cylindrical
• Closure Type: Open
• Weight: 7.97 LB
