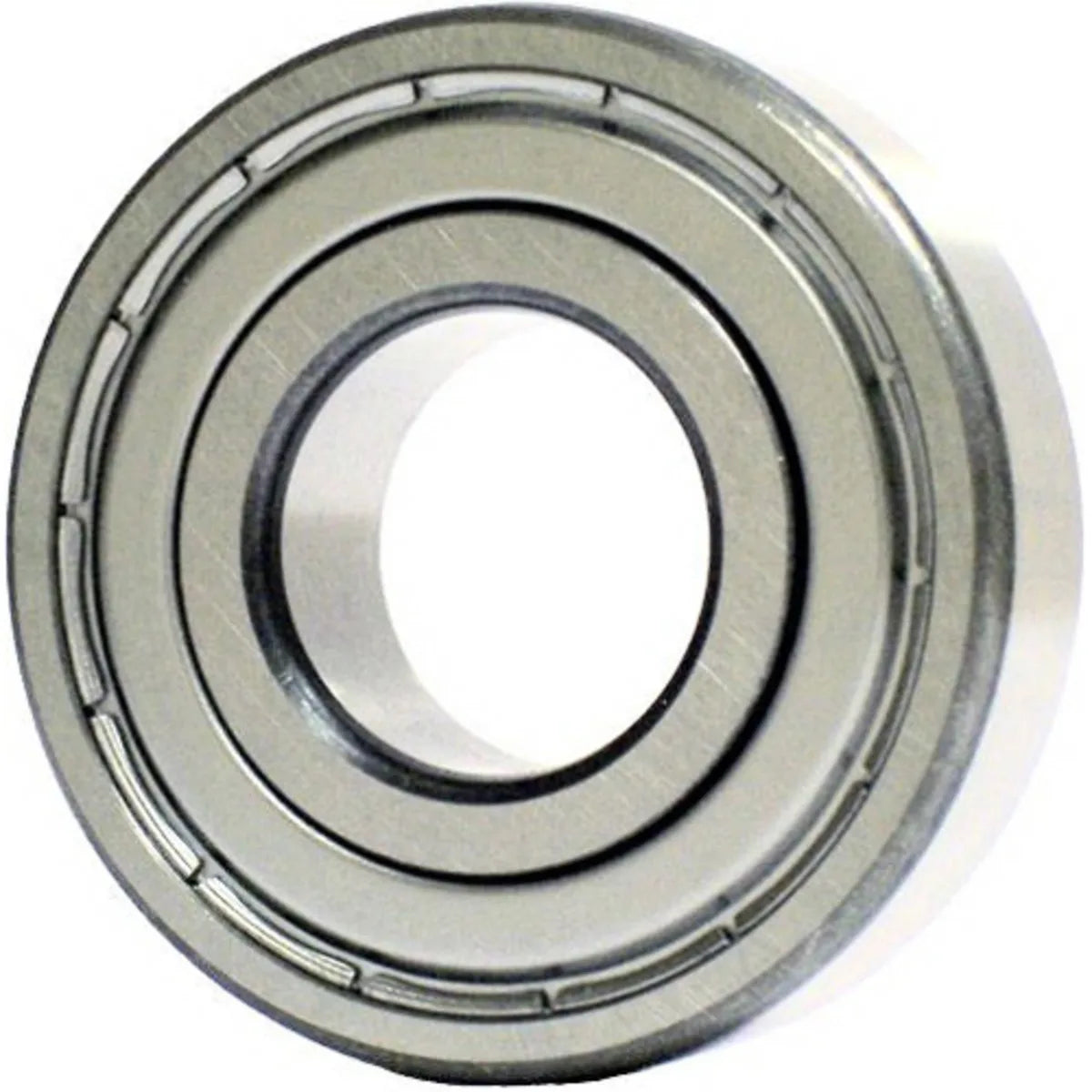

SKF 63112ZJEM Radial/Deep Groove Ball Bearing - Straight Bore, 55 mm ID, 120 mm OD, 29 mm Width, Double Shielded

Product Description

The SKF 6311-2Z Single Row Deep Groove Radial Ball Bearing, with MPN 63112ZJEM, is designed to handle both radial and axial loads. Its deep, uninterrupted raceway grooves allow for close osculation with the balls, resulting in improved load capacity and efficiency. This bearing features a double shield for protection against contaminants, increasing its longevity and reliability.

• Compatible with industrial fans, pumps, and agricultural machinery.
• Offers a C3 internal clearance for optimal fit and performance.
• Constructed with a pressed steel cage for enhanced durability.

Product Highlights

Ideal for a variety of applications requiring reliable bearing performance, the SKF 6311-2Z supports an RPM rating of up to 6300 while maintaining low operational costs.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part Number: 6311ZZ04

Technical Specifications

• Bore Diameter: 55 mm
• Outside Diameter: 120 mm
• Width: 29 mm
• Cage Material: Pressed Steel
• Dynamic Load Capacity: 74100 N
• Static Load Capacity: 45000 N
• Maximum RPM: 6300
• Temperature Rating: -40 to 100 °C
