SKF 6309-2Z Single Row Deep Groove Radial Ball Bearing, 45 mm Bore x 100 mm OD x 25 mm W

Product Description

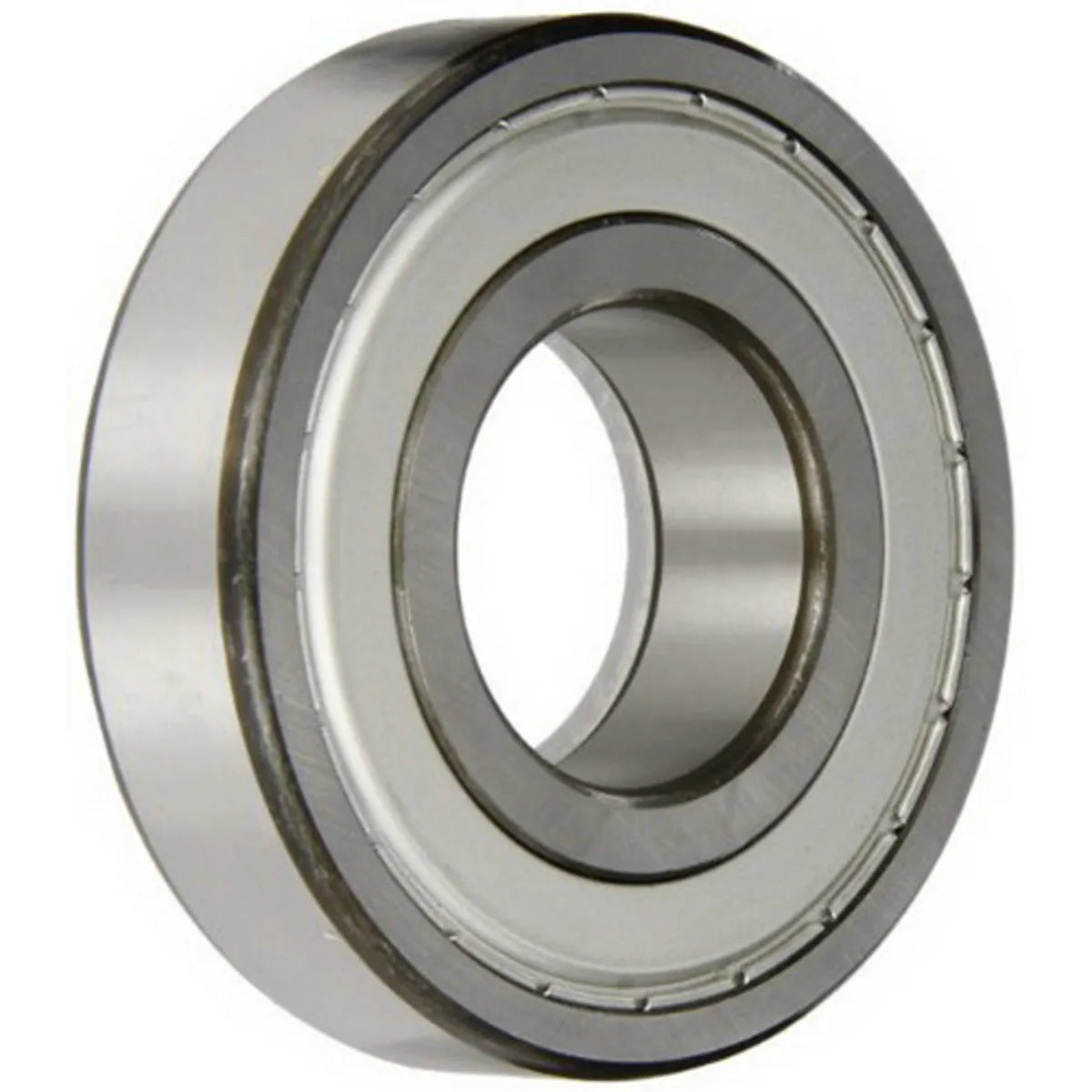

The SKF 6309-2Z is a single row deep groove radial ball bearing designed to handle both radial and axial loads. Its bore diameter measures 45 mm, while the outer diameter is 100 mm and the width is 25 mm. This bearing features two shields which protect it from dirt and moisture, enhancing its durability and longevity.

• Operates efficiently with low noise levels.
• Fits applications with a clearance rating of C3.
• Suitable for operating temperatures ranging from -40 to 100 degrees Celsius.

Product Highlights

The SKF 6309-2Z bearing is optimal for various applications, including electric motors, pumps, and agricultural machinery.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Series: 6309
• UPC: 07316577063779

Technical Specifications

• Bore Diameter: 45 mm
• Outside Diameter: 100 mm
• Width: 25 mm
• Cage Material: Pressed Steel
• Number of Rows: 1
• Static Load Capacity: 31500 N
• Dynamic Load Capacity: 55300 N
• Speed Rating: 7500 rpm Limiting, 15000 rpm Reference
