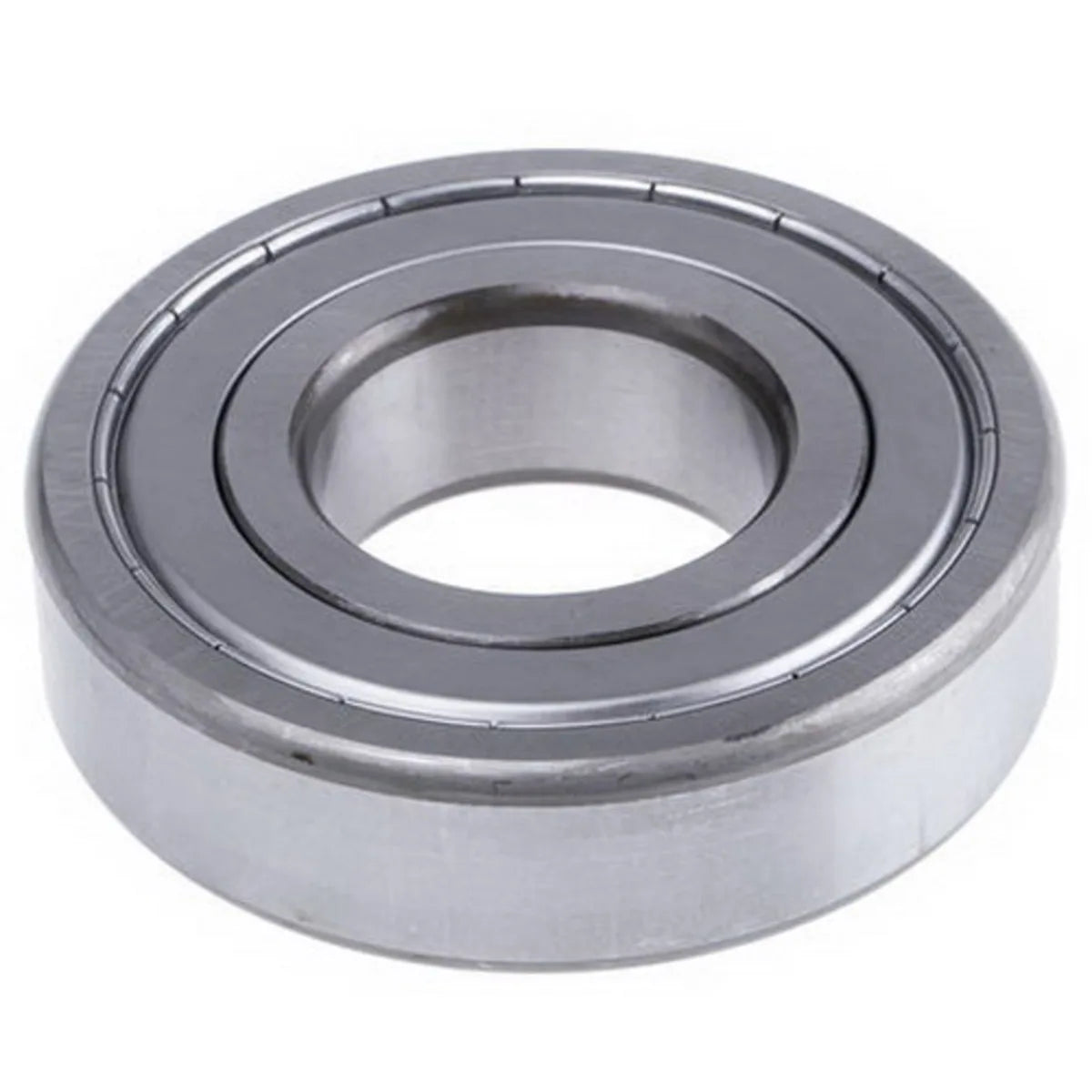

SKF 6308-2Z Single Row Deep Groove Radial Ball Bearing, 40 mm Bore x 90 mm OD x 23 mm W

Product Description

The SKF 6308-2Z is a single row deep groove radial ball bearing with a bore diameter of forty millimeters and an outside diameter of ninety millimeters. This bearing provides reliable performance and can support both radial and axial loads. It features a double shield construction that helps in reducing contamination and enhances wear resistance. The pressed steel cage maintains spacing between the balls, ensuring smooth operation.

• Suitable for various applications including fans and pumps
• Double shielded for improved durability
• C3 internal clearance for high-speed applications

Product Highlights

This bearing is designed for high performance in various industrial applications.

Product Information

Standard Information

• Brand: SKF
• MPN: 63082ZJEM

Technical Specifications

• Bore Diameter: 40 mm
• Outside Diameter: 90 mm
• Width: 23 mm
• Cage Material: Pressed Steel
• Enclosure Type: Double Shield
• Dynamic Load Capacity: 42300 N
• Static Load Capacity: 24000 N
• Speed Rating: 8500 rpm Limiting, 17000 rpm Reference
• Temperature Rating: -40 to 100 °C
