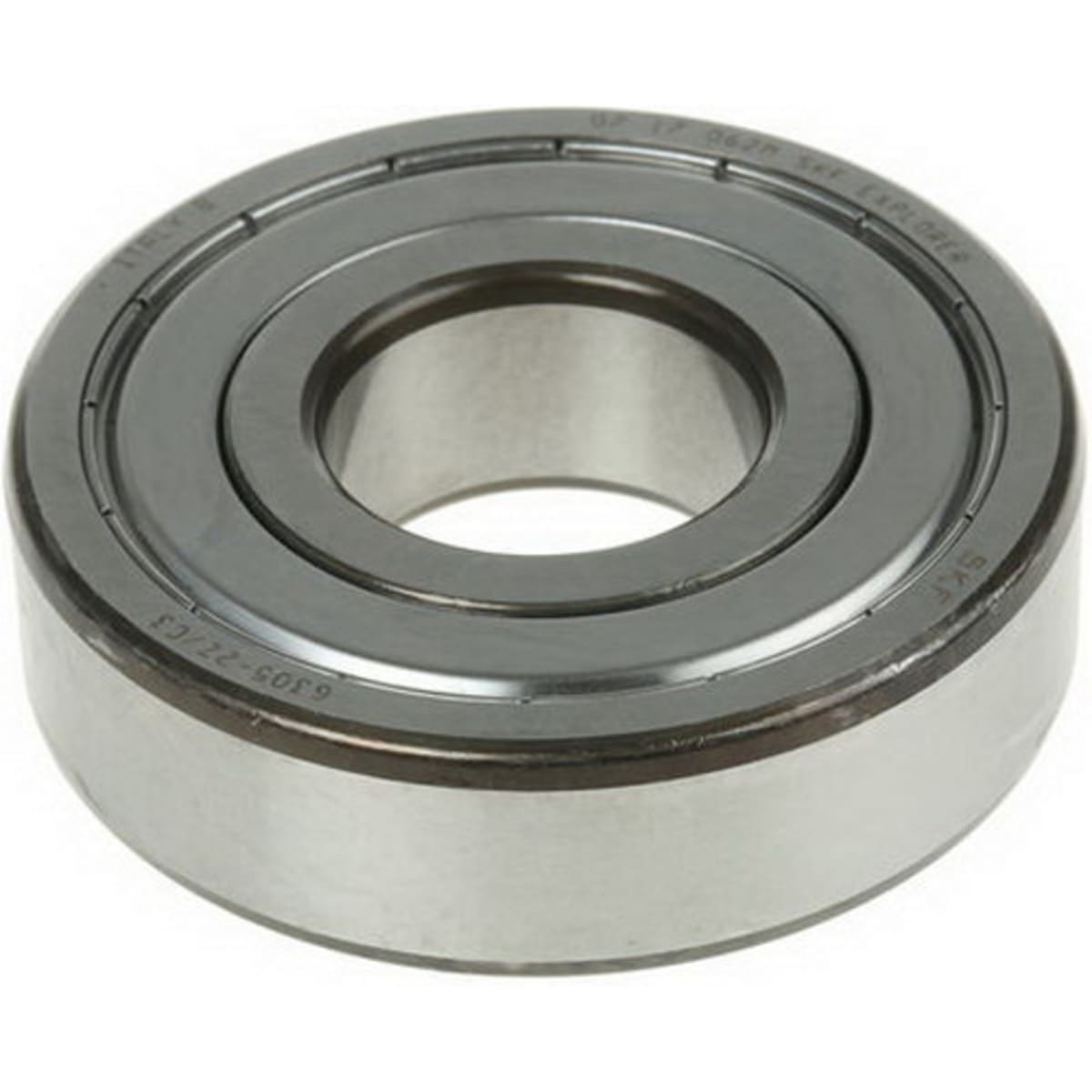

SKF 63052ZJEM Deep Groove Ball Bearing 25 mm Bore x 62 mm OD x 17 mm W Double Shield

Product Description

The SKF 63052ZJEM is a single row deep groove radial ball bearing with a bore diameter of twenty-five millimeters and an outside diameter of sixty-two millimeters. This bearing features a double shield design and a pressed steel cage which provides effective protection against contaminants. The deep raceway grooves allow it to accommodate both radial and axial loads in either direction, making it suitable for various applications including fans and pumps.

• Double shielded for enhanced protection
• Applicable for high-speed operations with low maintenance
• Suitable for a variety of industrial applications

Product Highlights

The SKF 63052ZJEM ball bearing is designed for reliable performance in various environments. It presents a balance of durability and efficiency, making it ideal for both industrial and automotive use.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part Number: 6305ZZ04

Technical Specifications

• Bore Diameter: 25 mm
• Outside Diameter: 62 mm
• Width: 17 mm
• Dynamic Load Capacity: 23400 N
• Static Load Capacity: 11600 N
• Speed Rating: 13000 rpm Limiting
• Cage Material: Pressed Steel
• Internal Clearance: C3
• Temperature Rating: -40 to 100 °C
