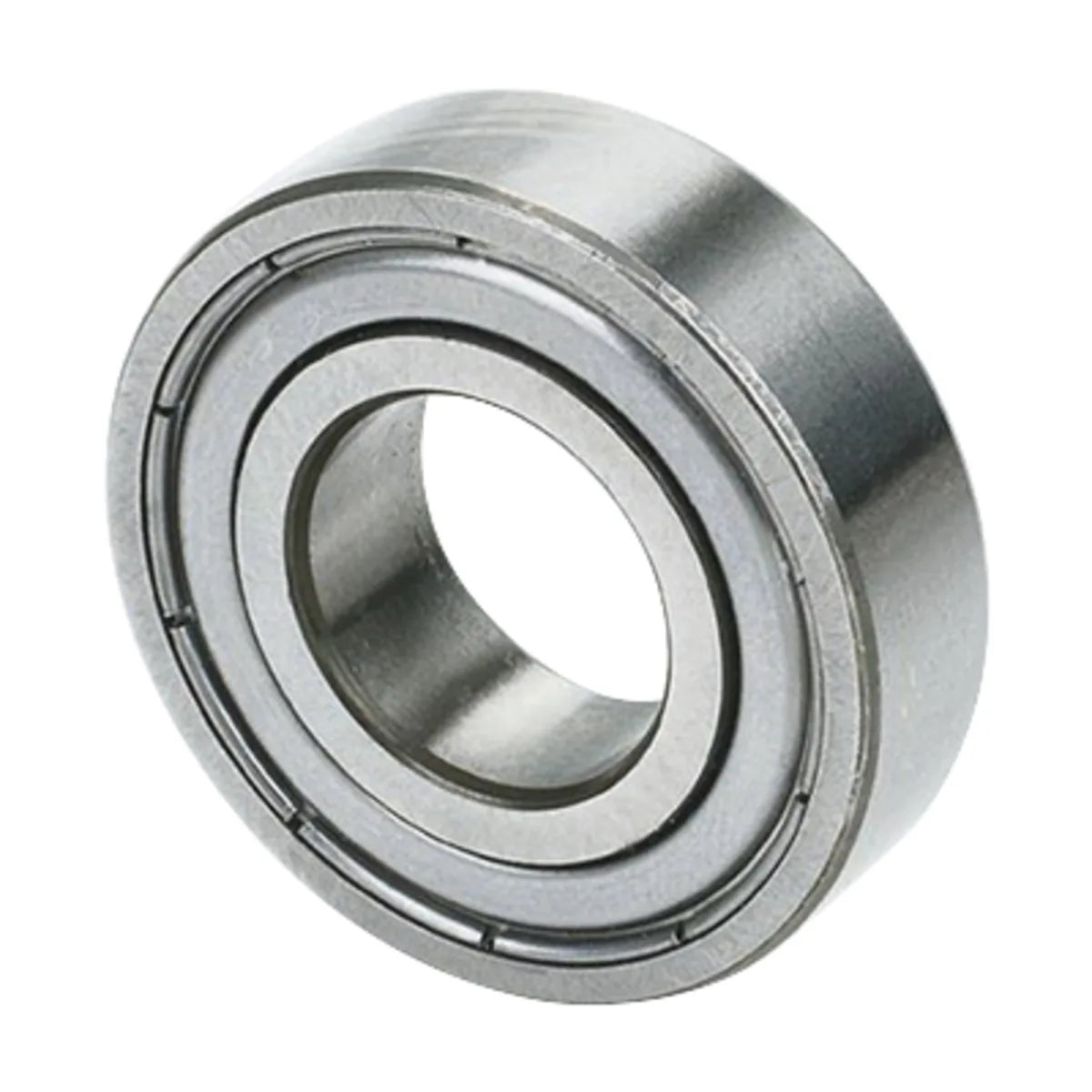

SKF 63042ZJEM Deep Groove Radial Ball Bearing 20 mm Bore x 52 mm OD x 15 mm W Double Shield

Product Description

SKF 6304-2Z is a single row deep groove radial ball bearing with an internal diameter of twenty millimeters and an outer diameter of fifty-two millimeters. It features a width of fifteen millimeters. This bearing has deep raceway grooves that enhance its load-carrying abilities in both radial and axial directions. The double shield design helps to retain lubricant and keeps contaminants out.

• Deep groove design allows for high radial and axial load capacity.
• Double shields provide protection against dust and moisture.
• Press steel cage improves bearing performance and longevity.

Product Highlights

The SKF 6304-2Z is ideal for applications in fans, pumps, and agricultural machinery. Its robust design supports a wide range of operational conditions.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part Number: 6304ZZ04

Technical Specifications

• Bore Diameter: 20 mm
• Outside Diameter: 52 mm
• Width: 15 mm
• Dynamic Load Capacity: 16800 N
• Static Load Capacity: 7800 N
• Speed Rating: 15000 rpm
• Temperature Rating: -40 to 100 °C
• Cage Material: Pressed Steel
